CFVE-A7BP-212.5TS

Oscillators Overview

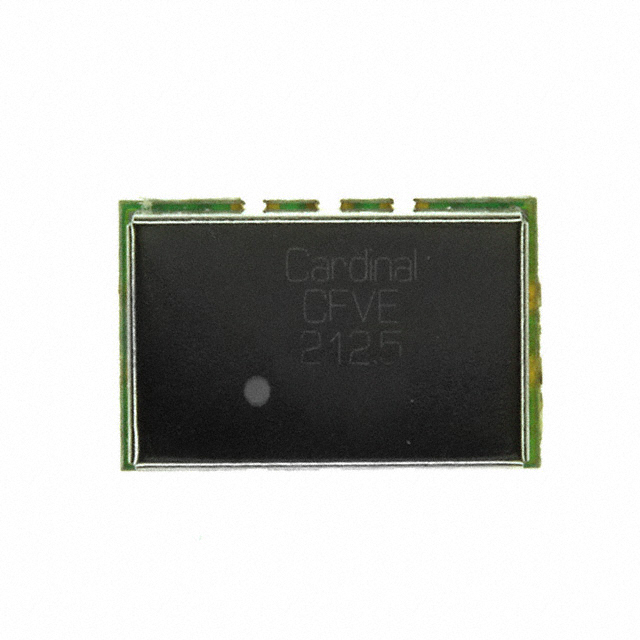

The CFVE-A7BP-212.5TS is a Voltage Controlled Crystal Oscillator (VCXO) manufactured by Cardinal Components Inc., operating at a nominal frequency of 212.5 MHz. It utilizes a crystal base resonator and provides an LVPECL output signal. The device supports a supply voltage range of 3.0 V to 3.6 V, with a maximum current consumption of 100 mA. It features enable/disable functionality and offers a frequency stability of ±50 ppm. The unit operates within a temperature range of -40°C to +85°C and is housed in a 6-SMD, no-lead package measuring 14.00 mm x 9.00 mm x 3.50 mm.

Oscillators Feature Summary

• Voltage-controlled operation for precise frequency tuning
• LVPECL output interface for high-speed digital compatibility
• Enable/Disable control function for power management
• Wide industrial temperature range capability

Oscillators Applications

• High-speed digital systems requiring precise timing
• Telecommunications equipment
• Data communication interfaces
• Test and measurement instruments

Oscillators Procurement Notes

Verify the specific suffix and part number against official Cardinal Components documentation to ensure correct output type and packaging. Confirm availability status as this component may be obsolete or discontinued. Cross-reference electrical parameters such as frequency stability and load capacitance with the latest datasheet before integration. Ensure supply voltage requirements match system design constraints.

Oscillators Selection Notes

Select this component when LVPECL outputs are required for high-frequency applications up to 212.5 MHz. Consider the ±50 ppm stability requirement and the need for voltage control capabilities. Evaluate the 6-SMD package dimensions against board space limitations. Verify that the 3.3V supply voltage aligns with the target system architecture and thermal environment specifications.

Oscillators Part Context

This oscillator belongs to the CFVE series from Cardinal Components Inc., designed for precision timing in demanding environments. The series typically includes various frequencies and output types, with this specific model focusing on the 212.5 MHz LVPECL variant. It represents a specialized solution for applications needing stable, tunable clock signals with low jitter characteristics.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct replacements or functional equivalents.
