CG04815-16M

Overview

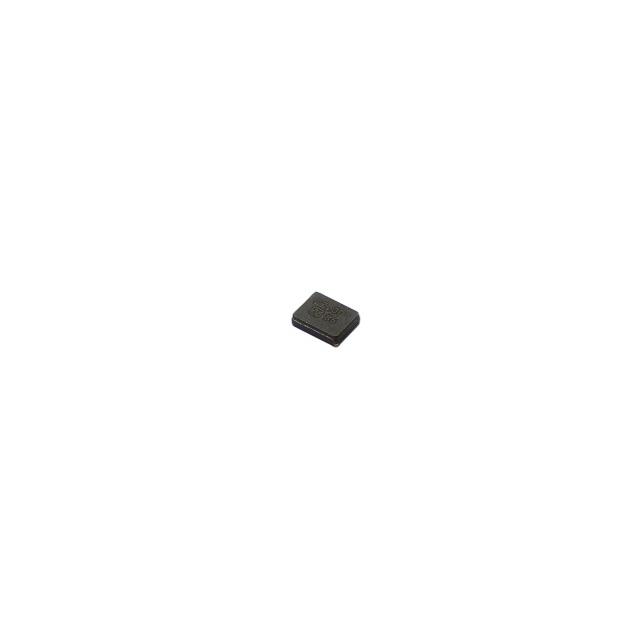

The CG04815-16M is a surface-mount crystal oscillator manufactured by NDK. It operates at a fundamental frequency of 16 MHz with a load capacitance of 8 pF and a maximum series resistance of 30 Ohms. The unit features a 4-SMD, no-lead package configuration. Frequency stability is maintained within ±20 ppm tolerance across the operating temperature range. This component is designed for integration into electronic circuits requiring precise clock signals.

Feature Summary

• Provides stable oscillation for digital timing applications
• Capable of withstanding mechanical shock and vibration
• Suitable for operation in harsh thermal environments

Applications

• Advanced Driver Assistance Systems (ADAS)
• Automotive sensor modules
• Camera system timing circuits

Procurement Notes

Verify the specific revision level and lot traceability against the manufacturer's current datasheet before procurement. Ensure that the 4-SMD footprint matches the target PCB design constraints. Confirm that the ±20 ppm stability meets the system clock accuracy requirements for the intended automotive or industrial application environment.

Selection Notes

Select this component when a 16 MHz reference is required for automotive-grade reliability. The 8 pF load capacitance must align with the host circuit's internal capacitance settings. Consider the 30 Ohm ESR limit for oscillator circuit startup conditions. Verify that the no-lead package style is compatible with the assembly process capabilities.

Part Context

This part belongs to NDK's line of high-reliability crystal units engineered for automotive electronics. The product family emphasizes durability under physical stress and extreme temperatures. These components support critical safety systems where timing precision and long-term stability are mandatory for proper system function.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 16 MHz frequency, 8 pF load capacitance, 30 Ohm ESR, and 4-SMD package dimensions exactly.
