CG07040-24M

Overview

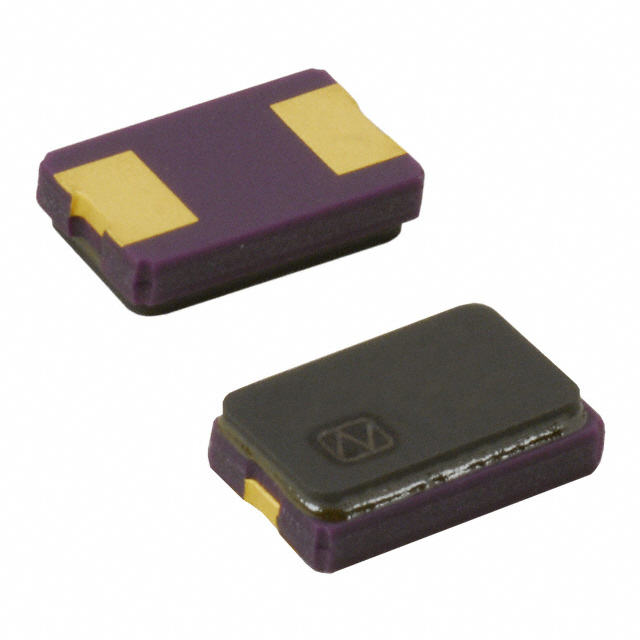

The CG07040-24M is a quartz crystal resonator manufactured by NDK (NIHON DEMPA KOGYO CO., LTD). It operates at a fundamental frequency of 24 MHz with a specified frequency tolerance of ±30 ppm. The component features a load capacitance of 18 pF and an equivalent series resistance (ESR) of 70 Ohms. It is housed in a compact 2-SMD, No Lead package, designed for surface-mount assembly on printed circuit boards.

Feature Summary

• High-quality mass-produced quartz crystal utilizing proprietary manufacturing technology
• Robust construction capable of withstanding severe shock and vibration conditions
• Compact 2-SMD no-lead package design suitable for space-constrained applications

Applications

• Advanced Driver Assistance Systems (ADAS)
• Camera modules
• Sensor integration systems

Procurement Notes

Verify the specific manufacturer part number against official NDK documentation to ensure authenticity. Confirm that the required frequency tolerance, load capacitance, and ESR values align with the target circuit design specifications before finalizing procurement orders.

Selection Notes

Select this component when a stable 24 MHz reference signal is required in environments subject to mechanical stress. Ensure the host circuit supports the 18 pF load capacitance and can drive the 70 Ohm impedance characteristics effectively for reliable oscillation.

Part Context

This component belongs to the NDK quartz crystal family, which leverages extensive experience in mass-producing uniform high-quality crystals. The brand specializes in components that maintain performance stability under harsh environmental conditions, particularly within automotive and industrial sectors.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with alternative suppliers by matching electrical parameters such as frequency, tolerance, and package dimensions.
