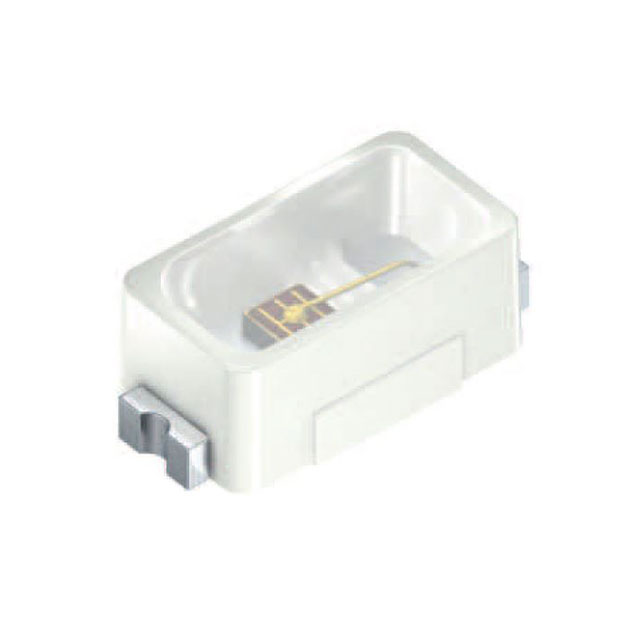

CH DELSS1.22-S1T2-35-0-20-R18

Description：LED RED CLEAR SMD
Series：FIREFLY
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)

SKU:53b8e4b80069 Category: LED Indication - Discrete Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RED CLEAR SMD
Series：FIREFLY
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：315mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.23mm x 0.60mm
Voltage - Forward (Vf) (Typ)：1.9V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：660nm
Features：-
Package / Case：2-SMD, Flat Leads
Supplier Device Package：SMD
Size / Dimension：1.40mm L x 0.80mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

Download product information

CH DELSS1.22-S1T2-35-0-20-R18

Overview

The CH DELSS1.22-S1T2-35-0-20-R18 is a single-color indicator LED manufactured by ams OSRAM USA INC. It features a red lens with a clear appearance and emits light at a peak wavelength of 643 nm. The component operates with a typical forward voltage of 1.8 V and has a test current rating of 2 mA. It provides a luminous intensity of 11.25 mcd with a viewing angle of 120 degrees. The device is housed in a standard 2-PLCC surface-mount package, measuring 3.20 mm in length, 2.80 mm in width, and 2.10 mm in maximum height.
