CH87062V200

Headers, Male Pins Overview

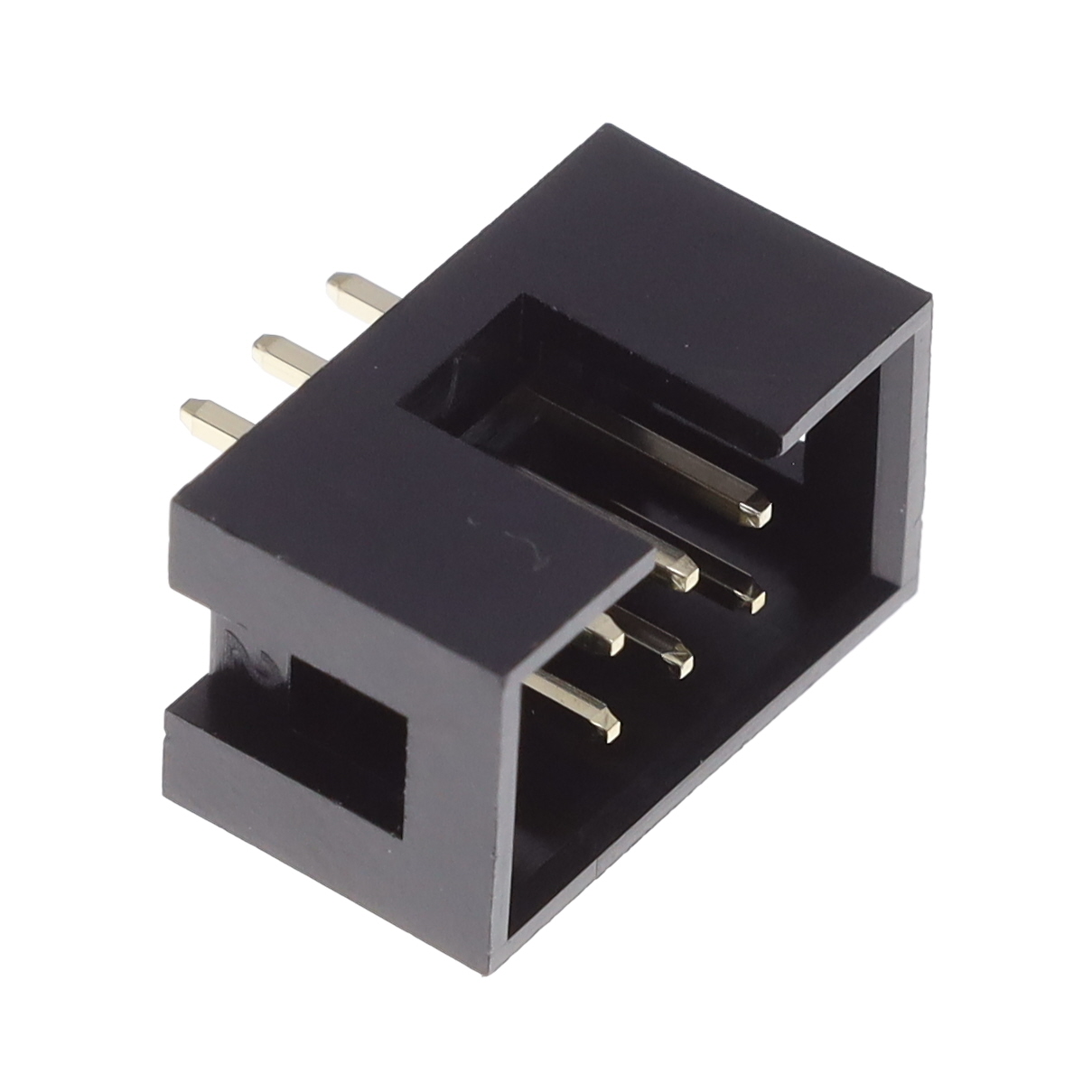

CH87062V200 is a dual-row board header manufactured by Cvilux USA, designed for through-hole mounting. It features six positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes black insulation rated UL94 V-0 and tin contact finishes. It supports a current rating of 3A and a voltage rating of 250VAC.

Headers, Male Pins Feature Summary

• Dual-row configuration for compact vertical space utilization
• Through-hole termination method for secure PCB attachment
• Black UL94 V-0 rated insulation material
• Tin-plated contacts for reliable conductivity

Headers, Male Pins Applications

• Debug and service ports in electronic assemblies
• Configuration interfaces requiring 2x3 pin arrangements
• General wire-to-board connections in consumer electronics

Headers, Male Pins Procurement Notes

Verify the specific suffix 'V200' against manufacturer documentation to confirm exact plating thickness and flammability ratings. Ensure mating receptacles match the 2.54mm dual-row pitch. Confirm RoHS3 compliance status via official datasheets before integration into regulated environments.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row male header is required for through-hole assembly. The 3A current rating suits moderate power applications. Verify that the target PCB layout accommodates the dual-row footprint and that mating connectors align with the 2.54mm grid spacing.

Headers, Male Pins Part Context

This part belongs to the CH87 series of rectangular headers from Cvilux USA. It serves as a standard interconnect solution for connecting wires or cables to printed circuit boards. The design emphasizes mechanical stability and electrical reliability in consumer and industrial electronic devices.

Headers, Male Pins Replacement Considerations

Compatible substitutes must maintain the 2x3 pin count, 2.54mm pitch, and through-hole mounting style. Verify that alternative parts offer equivalent 3A current and 250VAC voltage ratings. Ensure physical dimensions and pin alignment are identical to prevent assembly issues.
