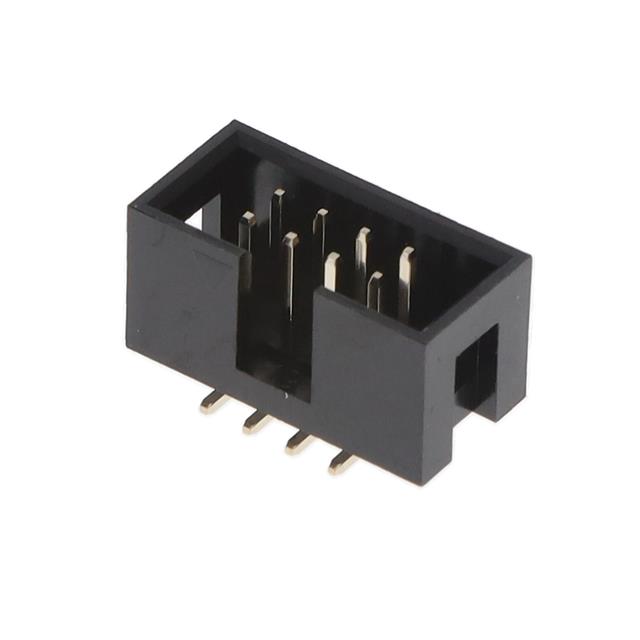

CH87082M1P0-R0 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Cvilux USA. Its product description is CH87 SERIES 2.54MM(.100) DUAL RO. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for CH87082M1P0-R0
- Description：CH87 SERIES 2.54MM(.100) DUAL RO
- Series：CH87
- Mfr：Cvilux USA
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Detent Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.362" (9.20mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyamide (PA6T), Nylon 6T
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：250VAC
Headers, Male Pins datasheet and documents for CH87082M1P0-R0
Headers, Male Pins Overview
The CH87082M1P0-R0 is a surface mount board connector from the CH87 series, manufactured by Cvilux USA. It features an 8-position, dual-row male header configuration with a 2.54mm (0.100 inch) pitch. The connector utilizes straight mounting and solder termination for PCB integration. Contact surfaces are finished with gold flash over nickel to ensure reliable electrical performance. The housing is polarized to prevent incorrect mating.
Headers, Male Pins Feature Summary
- Dual-row male pin configuration for high-density board connections
- Gold flash over nickel contact plating for durability
- Polarized housing design to ensure correct alignment
- Surface mount terminal style for automated assembly
Headers, Male Pins Applications
- Consumer electronics internal interconnects
- General purpose board-to-board connections
- Industrial control module interfaces
Headers, Male Pins Procurement Notes
Verify that the specific suffix -R0 matches the required reel packaging quantity and tape specifications for your SMT line. Confirm RoHS compliance status against current regulatory requirements in your target market. Ensure the polarized keying orientation aligns with the mating socket footprint to avoid assembly errors during production.
Headers, Male Pins Selection Notes
Select this component when a dual-row male header with 2.54mm pitch is required for surface mount applications. The gold-plated contacts offer superior corrosion resistance compared to tin-only alternatives. Verify that the 8-position count fits the available PCB area and that the straight profile accommodates the enclosure height constraints of the final device design.
Headers, Male Pins Part Context
This part belongs to the CH87 series of rectangular connectors designed for general-purpose electronic assemblies. The series offers various position counts and row configurations to support diverse connectivity needs. Cvilux manufactures these components to meet standard industry dimensions for headers, ensuring compatibility with corresponding sockets within the same product family.
