CH87102V200

Headers, Male Pins Overview

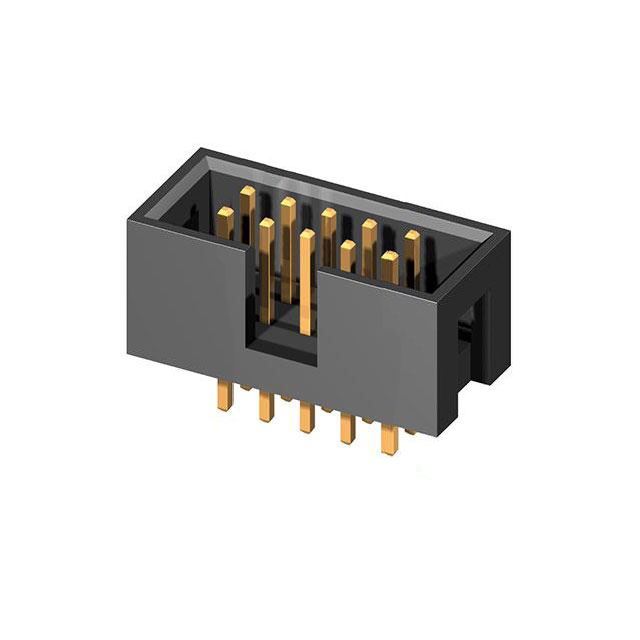

The CH87102V200 is a dual-row board header manufactured by Cvilux USA, designed for through-hole mounting. It features 10 positions with a 2.54mm (0.100 inch) pitch and a 2.54mm row spacing. The connector utilizes square male pins with gold flash plating on both contact and post surfaces, constructed from brass contacts within a black PBT insulator rated UL94 V-0. Electrical ratings include 3A current and 250VAC voltage across an operating temperature range of -40°C to 105°C. The assembly includes a four-wall shroud and detent lock mechanism.

Headers, Male Pins Feature Summary

• Dual-row straight header configuration with detent lock for secure mating
• Gold flash plated brass contacts ensuring reliable signal transmission
• Four-wall shrouded design providing alignment and protection
• Through-hole termination compatible with standard PCB fabrication

Headers, Male Pins Applications

• Consumer electronics interconnections
• General purpose circuit board-to-board connections
• Wire harness assemblies requiring secure locking

Headers, Male Pins Procurement Notes

Verify the specific pin count matches the required application, as the model number indicates a 10-position configuration distinct from other series variants. Confirm that the gold flash plating thickness meets the intended cycle life requirements for the target environment. Ensure the through-hole footprint aligns with the manufacturing capabilities of the printed circuit board supplier. Check RoHS compliance status if restricted substances are mandated for the end product.

Headers, Male Pins Selection Notes

Select this component when a locked, dual-row header is necessary for stable mechanical connection in consumer electronics. The 2.54mm pitch suits standard density layouts, while the 3A rating supports moderate power distribution. Consider the black PBT material and UL94 V-0 rating for fire safety compliance. The straight style facilitates direct board stacking or cable attachment without angular adapters.

Headers, Male Pins Part Context

This part belongs to the CH87 series of rectangular connectors produced by Cvilux USA. The series specializes in 2.54mm pitch headers for consumer electronics applications. The CH87102V200 variant specifically denotes a 10-position dual-row configuration with vertical orientation. It shares common design attributes with other members of the family, such as similar insulation materials and contact finishes.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same series include the CH87142V201, which offers a 14-position configuration with identical electrical and mechanical specifications. Users requiring different pin counts should consult the full CH87 catalog for matching pitch and housing dimensions.
