CH87142M1P0-R0

Headers, Male Pins Overview

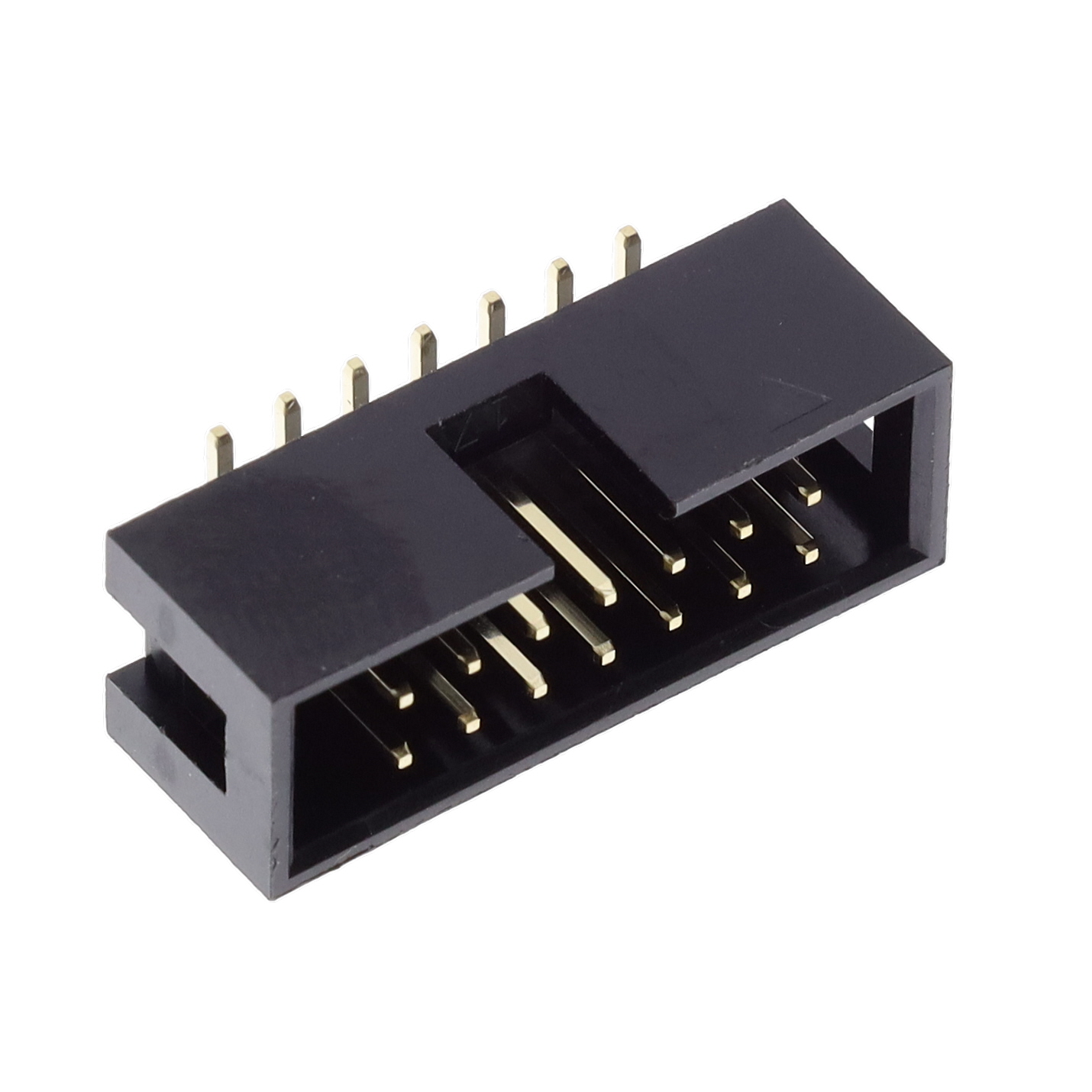

The CH87142M1P0-R0 is a surface mount header from the Cvilux USA CH87 series. It features 14 positions in a dual row configuration with a 0.100 inch (2.54mm) pitch. The connector utilizes square male pins with gold plating on brass contacts. Designed for board-to-board or cable applications, it offers a 0.358 inch insulation height and operates within a temperature range of -40°C to 105°C. Rated at 3A and 250VAC, it employs a four-wall shielded housing and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Surface mount termination method for automated PCB assembly
• Four-wall shielded housing design for signal integrity
• Gold-plated brass contacts for reliable conductivity

Headers, Male Pins Applications

• Consumer electronics internal interconnects
• Board-to-board connections in compact devices
• Cable-to-board interface modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm surface mount compatibility and pin configuration. Ensure the selected variant matches the required contact count and pitch specifications for the target application. Cross-reference the component marking with the approved bill of materials to prevent substitution errors during production.

Headers, Male Pins Selection Notes

Select this component when surface mount technology is required for high-density interconnects. The dual-row layout supports increased pin counts within a limited footprint. Verify that the operating voltage and current ratings align with the circuit requirements. Confirm that the thermal profile of the assembly process is compatible with the PBT insulation material and specified temperature limits.

Headers, Male Pins Part Context

This part belongs to the CH87 series of rectangular connectors manufactured by Cvilux USA. The series focuses on providing reliable interconnection solutions for consumer electronics. The CH87 line includes various configurations for through-hole and surface mount applications, offering standardized pitches and contact arrangements for widespread industry adoption.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 14-position dual-row surface mount form factor and 2.54mm pitch. Verify mechanical dimensions and electrical ratings before integration. Generic equivalents may lack the specific four-wall shielding or contact plating specifications.
