CH87202M1P0-R0

Headers, Male Pins Overview

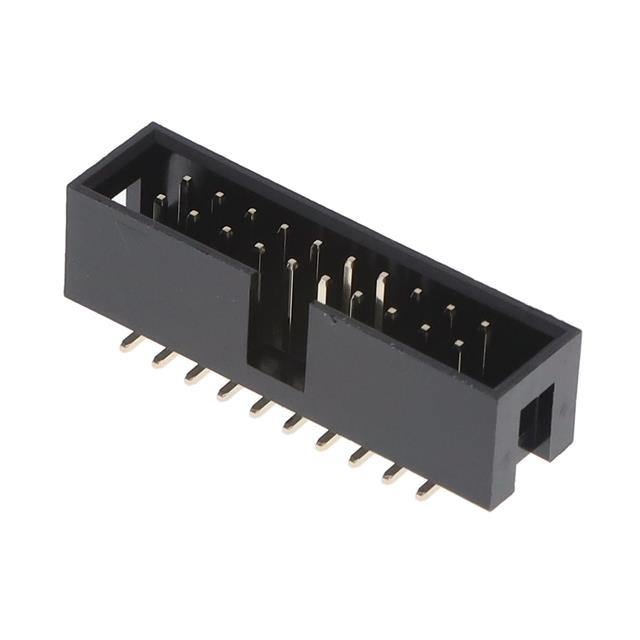

The CH87202M1P0-R0 is a surface mount male pin header manufactured by Cvilux USA. It features a 20-position configuration with a 0.100-inch (2.54mm) pitch. The component is designed for board-to-board or board-to-wire connections in electronic assemblies.

Headers, Male Pins Feature Summary

• Surface mount mounting style for automated assembly
• Male pin contact type for socket engagement
• Standard 2.54mm pitch spacing

Headers, Male Pins Applications

• Consumer electronics interconnects
• General purpose circuit board headers
• Industrial control panel connections

Headers, Male Pins Procurement Notes

Verify the specific manufacturer datasheet to confirm mechanical dimensions and material specifications. Ensure compatibility with mating connectors regarding pitch and contact geometry before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a 20-position surface mount header is required. Confirm that the PCB footprint matches the 2.54mm grid and that the current rating meets the application requirements.

Headers, Male Pins Part Context

This part belongs to the CH series of pin headers produced by Cvilux USA. The series focuses on standard connector solutions for consumer electronics, offering reliable connectivity options for various board layouts.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 20-position count, 2.54mm pitch, and surface mount orientation. Verify that alternative suppliers provide identical mechanical profiles and contact materials.
