CH87202V201

Headers, Male Pins Overview

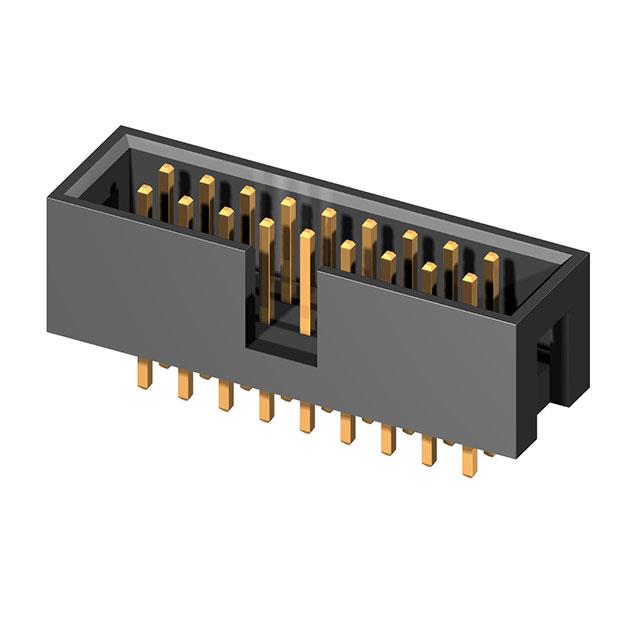

The CH87202V201 is a dual-row male pin header manufactured by Cvilux USA, designed for through-hole board mounting. It features a 2.54mm (0.100 inch) pitch with 20 positions arranged in two rows. The connector utilizes brass contacts with gold plating and polybutylene terephthalate (PBT) insulation rated UL94 V-0. It operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Dual-row straight header configuration for high-density connections
• Through-hole termination method for secure PCB attachment
• Gold-plated brass contacts ensuring reliable conductivity
• UL94 V-0 flammability rating for enhanced safety

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly
• Communication equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific contact finish thickness and insulation material grade against the official manufacturer datasheet before integration. Confirm that the through-hole footprint matches the target PCB design requirements. Ensure compliance with RoHS3 regulations if required by the end-product specifications. Cross-reference the operating temperature range with the application environment limits.

Headers, Male Pins Selection Notes

Select this component when a dual-row male header with a 2.54mm pitch is required for through-hole applications. Consider the 20-position count and straight orientation relative to available board space. Evaluate the PBT insulation and UL94 V-0 rating against thermal and safety standards. Compare the brass contact material and gold plating against cost and performance needs.

Headers, Male Pins Part Context

This part belongs to the CH87 series of rectangular connectors from Cvilux USA. It is functionally similar to models like CH87142V201 and CH87262V200, differing primarily in position count and specific suffix variations. The series provides standardized headers for various board-to-board and wire-to-board applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes include CH87142V201 and CH87262V200 from the same manufacturer family. Verify that alternative parts match the 2.54mm pitch, dual-row configuration, and 20-position requirement. Ensure mechanical dimensions and electrical ratings are identical to maintain system integrity.
