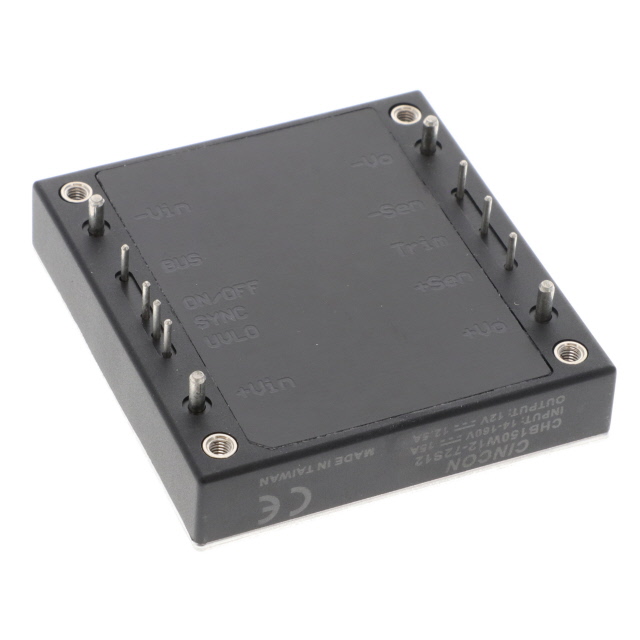

CHB150W12-72S12

CHB150W12-72S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 12V 150W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CHB150W12-72S12

• Description：DC DC CONVERTER 12V 150W
• Series：CHB150W12 (150W)
• Mfr：Cincon Electronics Co. LTD
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：14V
• Voltage - Input (Max)：160V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12.5A
• Power (Watts)：150 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 100°C
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：Enable, Active High
• Approval Agency：CB, CE, cURus
• Standard Number：50155; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CHB150W12-72S12
