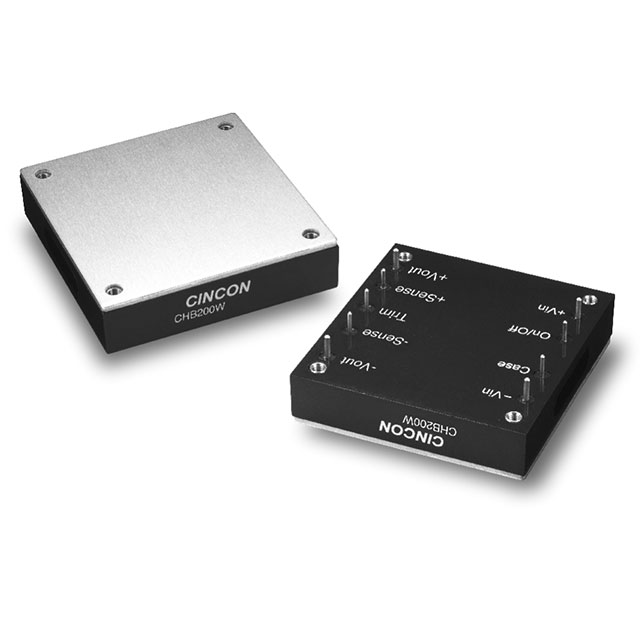

CHB200W-24S3V3N

CHB200W-24S3V3N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 3.3V 165W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CHB200W-24S3V3N

• Description：DC DC CONVERTER 3.3V 165W
• Series：CHB200W (200W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：50A
• Power (Watts)：165 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm)
• Supplier Device Package：Half Brick
• Control Features：Enable, Active Low
• Approval Agency：CE, cURus
• Standard Number：60950-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CHB200W-24S3V3N
