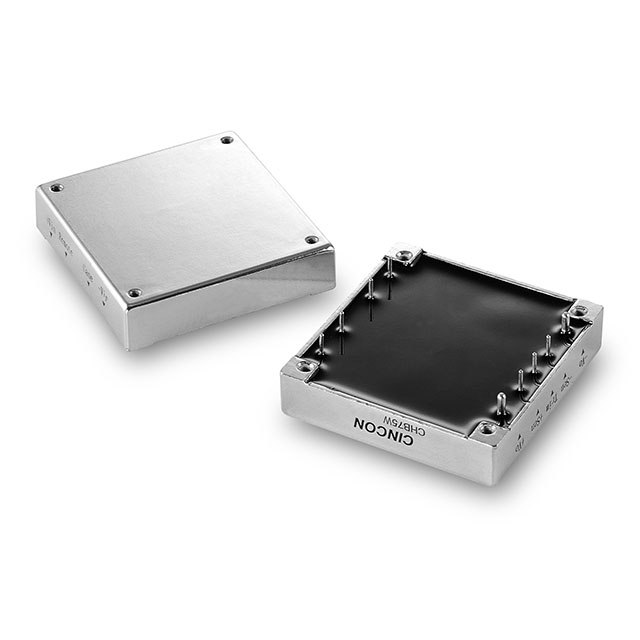

CHB75W-24S05

CHB75W-24S05 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 5V 75W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CHB75W-24S05

• Description：DC DC CONVERTER 5V 75W
• Series：CHB75W (75W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：15A
• Power (Watts)：75 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：Enable, Active High
• Approval Agency：CE, cURus
• Standard Number：60950-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CHB75W-24S05
