CHPFL-0010-BNC

Overview

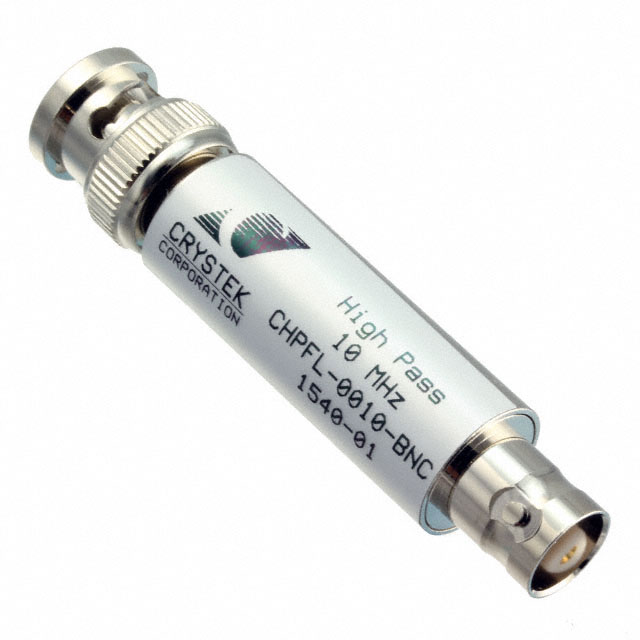

The CHPFL-0010-BNC is a high-pass filter manufactured by Crystek Corporation, designed for signal conditioning applications. It operates within a frequency range from DC to 10 MHz and features a 50 Ohm impedance. The component utilizes BNC connectors for termination and mounting. It supports a maximum power handling capacity of 4 W. The device functions reliably across an operating temperature range of -40°C to +85°C.

Feature Summary

• Provides RF high-pass filtering with a cutoff frequency at 10 MHz
• Features inline free-hanging mounting with BNC connectors
• Supports up to 4 W power handling capacity
• Operates within a wide industrial temperature range

Applications

• RF signal conditioning in communication systems
• High-pass filtering in test and measurement equipment
• Signal integrity management in electronic circuits

Procurement Notes

Verify the specific datasheet version for insertion loss characteristics, which vary significantly across the passband. Confirm that the BNC connector type matches your system interface requirements. Ensure the 4 W power rating aligns with your application's signal levels. Check the operating temperature range against your environmental conditions. Validate the 50 Ohm impedance compatibility with your source and load impedances before procurement.

Selection Notes

Select this component when a sharp cutoff near 10 MHz is required for high-pass filtering. Consider the 7th order Chebyshev response for steep attenuation below the cutoff frequency. Evaluate the physical size constraints as it uses a free-hanging inline package. Compare insertion loss specifications if low signal degradation is critical. Ensure the BNC connector style fits your existing cabling infrastructure.

Part Context

This part belongs to the CHPFL series of high-pass filters from Crystek Corporation. The series includes various cutoff frequencies, such as 25 MHz and 50 MHz variants. These components are designed for RF applications requiring precise frequency selection. The CHPFL series typically offers robust construction for reliable performance in demanding environments.

Replacement Considerations

Direct substitutes may include other Crystek CHPFL models with similar cutoff frequencies, such as CHPFL-0025-BNC, though the cutoff frequency will differ. Verify impedance and connector types when considering alternatives from other manufacturers. Ensure replacement parts meet the same power and temperature specifications.
