CHPFL-0045-BNC

Overview

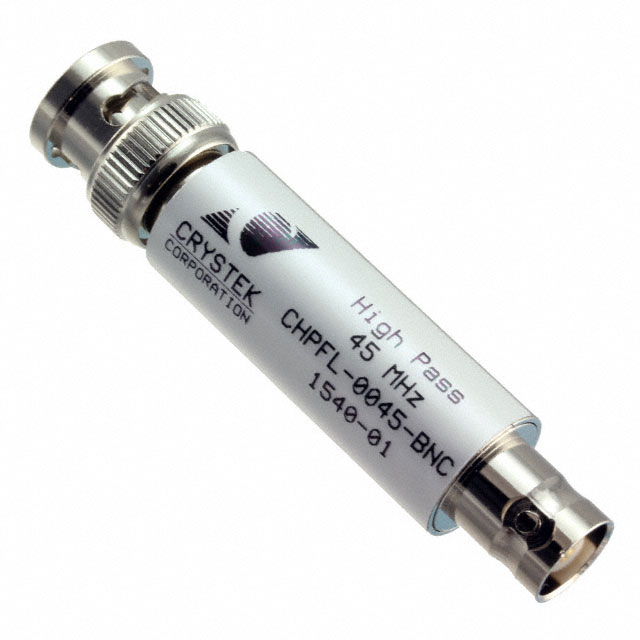

The CHPFL-0045-BNC is a high-pass RF filter manufactured by Crystek Corporation. It features a center frequency of 45 MHz and operates within an impedance of 50 Ohms. The component utilizes BNC connectors for termination and is designed for free-hanging, in-line mounting. It supports an operating temperature range from -40°C to +85°C. This signal conditioning device belongs to the CHPFL series and is classified as a 7th order filter.

Feature Summary

• Provides high-pass filtering functionality with a 45 MHz center frequency
• Features BNC connector termination for direct inline integration
• Designed for free-hanging installation without PCB mounting requirements

Applications

• RF signal conditioning in communication systems
• Laboratory test and measurement equipment
• General purpose radio frequency applications requiring high-pass characteristics

Procurement Notes

Verify the specific part number CHPFL-0045-BNC against official Crystek documentation to confirm active status and exact specifications. Ensure compatibility with 50 Ohm system impedance and BNC interface requirements. Check for any updated datasheets regarding environmental ratings or mechanical dimensions before procurement.

Selection Notes

Select this component when a discrete high-pass filter with a 45 MHz cutoff is required. It is suitable for applications needing inline signal conditioning without PCB footprint constraints. Consider the 50 Ohm impedance match and BNC connectivity for seamless integration into existing RF test setups or modular systems.

Part Context

This component is part of the Crystek CHPFL series, which includes various high-pass filters with different frequency ratings. The series is characterized by its use of BNC connectors and free-hanging design, catering to applications where flexible, non-permanent RF filtering solutions are necessary.

Replacement Considerations

The CHPFL-0010-BNC is a similar high-pass filter from the same manufacturer series. Verify if the lower frequency rating of the substitute meets the specific application requirements before considering it as a replacement.
