CHPFL-0050-BNC

Overview

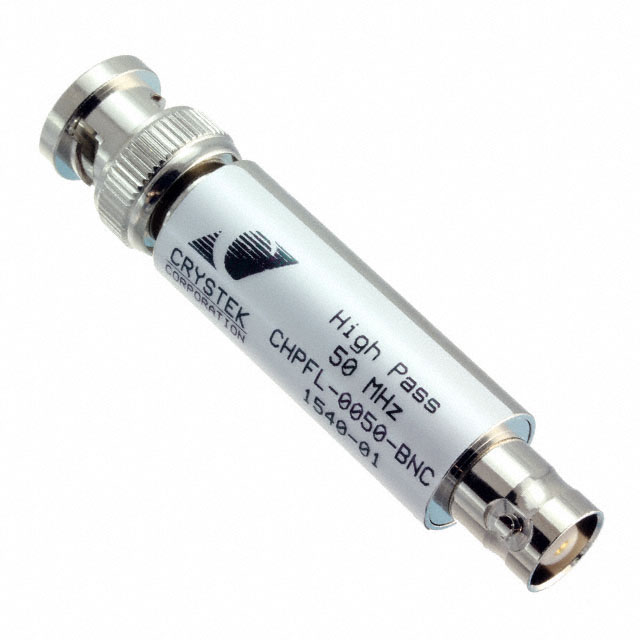

The CHPFL-0050-BNC is a high-pass RF filter manufactured by Crystek Corporation. It features a cutoff frequency of 50 MHz and operates within a temperature range of -40°C to +85°C. The component utilizes a 7th-order response with a 50 Ohm impedance. It employs BNC connectors for inline installation, providing signal conditioning in radio frequency applications.

Feature Summary

• Provides high-pass filtering with a 7th-order response characteristic
• Features BNC connectors for direct inline circuit integration
• Operates reliably across an extended industrial temperature range

Applications

• Radio frequency signal conditioning
• High-pass filtering in communication systems
• Test and measurement equipment signal paths

Procurement Notes

Verify the specific datasheet version for precise insertion loss and power handling specifications before finalizing design integration. Confirm that the BNC connector interface matches the system requirements. Ensure the operating environment remains within the specified -40°C to +85°C thermal limits to maintain performance integrity and longevity.

Selection Notes

Select this component when a fixed 50 MHz high-pass cutoff is required with standard BNC connectivity. The 7th-order response offers steep attenuation characteristics suitable for rejecting lower frequency interference. Consider the inline form factor for easy integration into existing coaxial test setups or RF chains without requiring additional mounting hardware.

Part Context

This part belongs to the CHPFL series of high-pass filters from Crystek Corporation. These components are designed for RF applications requiring precise frequency discrimination. The series typically includes various cutoff frequencies and connector types to accommodate different system architectures and impedance matching needs.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
