Product Detailed Parameters
- Description：RF FILTER HIGH PASS 80MHZ INLINE
- Series：CHPFL
- Mfr：Crystek Corporation
- Package：Bulk
- Frequency：80MHz
- Bandwidth：-
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Free Hanging (In-Line)
- Package / Case：Inline, BNC Connection, F and M
- Size / Dimension：0.550" Dia x 2.590" L (13.97mm x 65.79mm)
- Height (Max)：-
Download product information
Overview

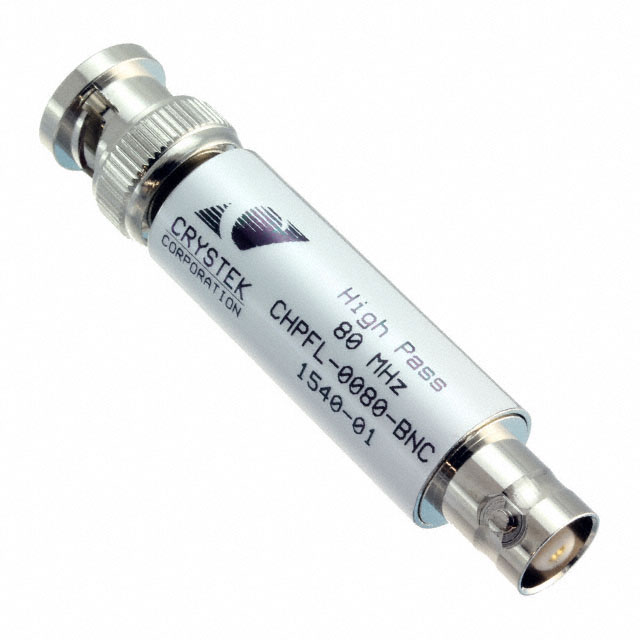

The CHPFL-0080-BNC is a high-pass filter manufactured by Crystek Corporation, designed for radio frequency signal conditioning. It features an inline BNC connector interface and operates within a 50 Ohm impedance system. The component provides a 7th order Chebyshev response with a cutoff frequency of 80 MHz. It is engineered to function reliably across a temperature range of -40°C to +85°C.
Feature Summary
- Provides steep attenuation characteristics through a 7th order Chebyshev filter response
- Features integrated BNC connectors for direct coaxial cable interfacing
- Maintains stable performance across industrial temperature ranges
Applications
- RF signal conditioning in communication systems
- Laboratory test and measurement equipment
- General purpose RF circuit filtering
Procurement Notes
Verify the specific part number suffix against official manufacturer documentation to ensure correct connector type and frequency rating. Confirm that the required insertion loss and VSWR specifications align with your system design requirements before procurement. Check current availability status as lead times may vary based on production schedules.
Selection Notes
Select this component when a fixed 80 MHz high-pass characteristic is required with standard BNC connectivity. Ensure the system impedance matches the 50 Ohm specification. Consider the physical form factor of the inline BNC housing for integration into existing chassis or panel layouts.
Part Context
This component belongs to the CHPFL series of high-pass filters from Crystek Corporation. The series offers various cutoff frequencies while maintaining consistent BNC connector interfaces and 50 Ohm impedance characteristics for standardized RF applications.
Replacement Considerations
Check for other models within the CHPFL series with different cutoff frequencies if the 80 MHz specification does not match the application needs. Verify mechanical compatibility if substituting with similar inline BNC filters from other manufacturers.
