CHQ02-5N1G-RC

Fixed Inductors Overview

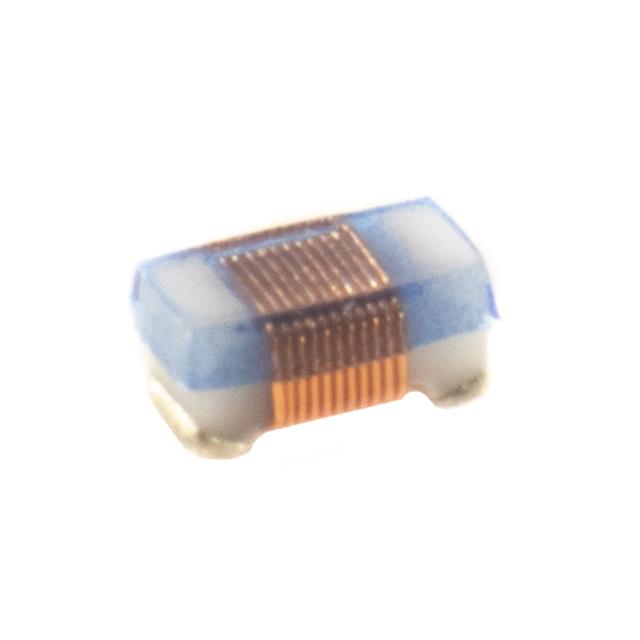

The CHQ02-5N1G-RC is a fixed surface-mount inductor manufactured by Allied Components International. It features an inductance of 5.1 nH with a tolerance of ±2%. The component utilizes a ceramic core and is housed in a 0402 package. It is RoHS compliant and lead-free.

Fixed Inductors Feature Summary

• Utilizes a ceramic core for stable high-frequency performance
• Designed as a high-current chip inductor
• RoHS compliant and lead-free construction

Fixed Inductors Applications

• RF circuits
• High-frequency signal processing
• Telecommunications equipment

Fixed Inductors Procurement Notes

Verify the specific datasheet for the CHQ02-5N1G-RC to confirm exact DC resistance and saturation current values, as these parameters are critical for circuit design. Ensure the 0402 package dimensions align with your PCB footprint requirements before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when a precise 5.1 nH inductance is required in a compact 0402 form factor. The ceramic core construction makes it suitable for applications demanding stability at high frequencies. Verify that the ±2% tolerance meets the strictness of your RF design specifications.

Fixed Inductors Part Context

This part belongs to the CHQ02 series of ceramic core high-current chip inductors from Allied Components International. These components are designed for surface-mount technology and are intended for use in space-constrained electronic assemblies requiring reliable magnetic performance.

Fixed Inductors Replacement Considerations

Check for other Allied Components models within the CHQ02 series that offer compatible inductance values and package sizes. Ensure any substitute maintains the ceramic core construction and 0402 footprint to guarantee mechanical and electrical compatibility.
