CI0106P1VK0-NH

Headers, Male Pins Overview

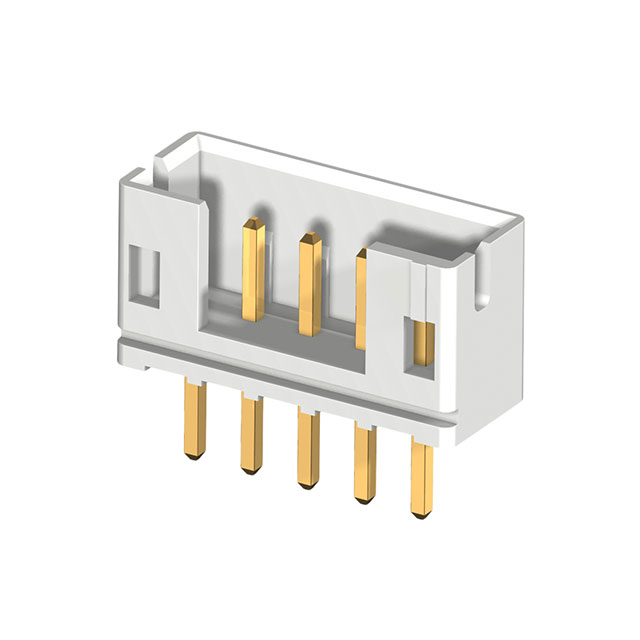

The CI0106P1VK0-NH is a rectangular connector header manufactured by Cvilux USA, designed for surface mount applications. It features a single row with six positions and a mating pitch of 2.00mm (0.079 inches). The contacts are male pins made of brass with tin plating, offering a mating contact length of 3.61mm. Rated for 2A current and 250VAC/DC voltage, the unit utilizes a PA6T halogen-free insulation material rated UL94 V-0. It operates within a temperature range of -25°C to 105°C and includes pin lock features for secure board attachment.

Headers, Male Pins Feature Summary

• Surface mount design with solder termination for reliable PCB integration
• Four-wall shrouded housing provides directional alignment and protection
• Pin lock mechanism ensures secure retention during assembly and operation
• Halogen-free PA6T insulation supports compliance with environmental standards

Headers, Male Pins Applications

• Consumer electronics internal interconnects
• Industrial control board signal routing
• Automotive electronic module connections

Headers, Male Pins Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact packaging and termination specifications. Ensure compatibility with automated pick-and-place equipment due to the surface mount configuration. Cross-reference the RoHS3 status and MSL rating with project requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header is required for space-constrained surface mount designs. The 2.00mm pitch accommodates standard ribbon or wire harness interfaces. Consider the 2A current rating and 250V voltage limit to ensure electrical safety margins are met for the intended circuit application.

Headers, Male Pins Part Context

This part belongs to the CI01 series of rectangular connectors from Cvilux USA. The series offers various pin counts and configurations tailored for modern electronics manufacturing. The CI0106P1VK0-NH specifically addresses needs for compact, high-density connections in surface mount technology environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
