CI0108M1HR0-NH

Headers, Male Pins Overview

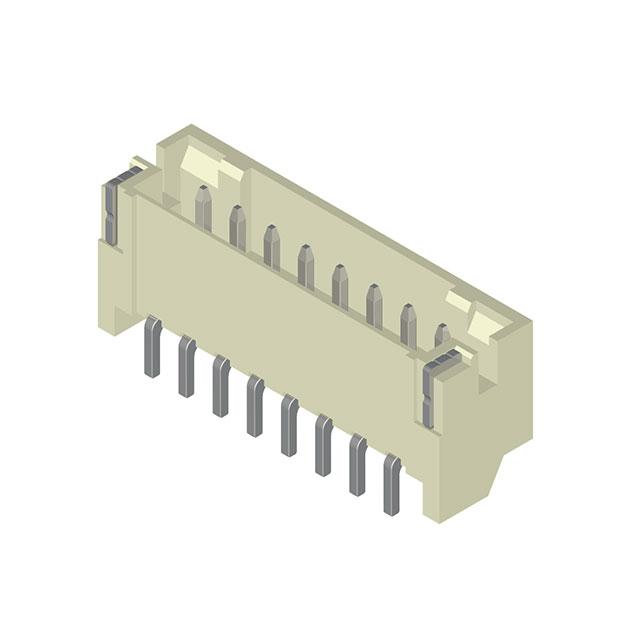

The CI0108M1HR0-NH is a single-row, right-angle surface-mount header connector manufactured by Cvilux USA. It features eight positions with a 2.00mm (0.079 inch) mating pitch. The connector utilizes tin-plated phosphor bronze contacts and a natural-colored polyamide PA6T insulation material rated UL94 V-0. Designed for board-to-cable or wire applications, it operates within a temperature range of -25°C to 105°C and supports a rated current of 2A AC/DC at 250VAC/DC.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact PCB integration
• Single row configuration with fixed solder tail termination
• Halogen-free polyamide insulation with UL94 V-0 flammability rating
• Tin-plated phosphor bronze contacts for reliable signal transmission

Headers, Male Pins Applications

• Board-to-cable interconnections in consumer electronics
• Signal routing in industrial control modules
• Internal wiring connections in automotive electronic units
• Compact device assembly requiring low-profile headers

Headers, Male Pins Procurement Notes

Verify the specific part number against official Cvilux documentation to ensure compatibility with mating housings and terminals. Confirm that the RoHS3 compliance status matches project requirements. Check datasheet specifications for operating temperature limits and current ratings before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a right-angle, surface-mount header with an 8-position count and 2.00mm pitch is required. Ensure the application environment falls within the specified -25°C to 105°C operating range. Verify that the 2A current rating and 250V voltage rating are sufficient for the circuit design. Consider the natural color and halogen-free material properties if environmental regulations apply.

Headers, Male Pins Part Context

This connector belongs to the CI01 series of rectangular connectors from Cvilux USA. The series offers various position counts and mounting styles, including straight and right-angle options. The CI01 series is designed for general-purpose electronic interconnections, providing reliable performance in space-constrained applications through its compact single-row layout and robust construction materials.

Headers, Male Pins Replacement Considerations

Compatible mating housing: CI0108S0000-NH. Compatible terminal: CI01T011PP0.
