CI2503P1H00-NH

Headers, Male Pins Overview

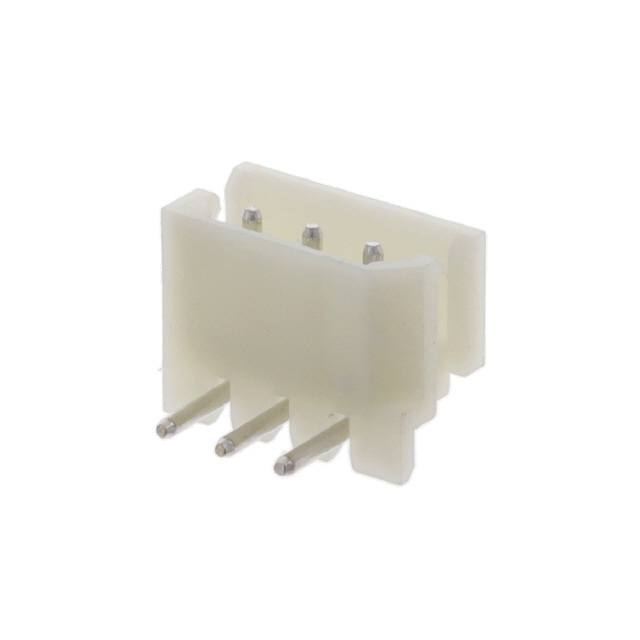

The CI2503P1H00-NH is a 3-position wire-to-board header connector from the Cvilux USA CI25 series. It features a 2.50mm (0.098 inch) mating pitch and utilizes through-hole, right-angle mounting for secure PCB attachment. The connector employs male pin contacts with a circular shape and brass material, finished with tin plating to ensure reliable conductivity. Designed for board-to-cable or board-to-wire applications, it includes a four-wall shielded housing made of halogen-free polyamide (PA6T). The component supports a rated current of 3A at 50VAC and operates within a temperature range of -25°C to 85°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting style facilitates compact vertical PCB integration
• Four-wall shielded housing provides mechanical protection and alignment
• Halogen-free polyamide insulation ensures compliance with environmental standards

Headers, Male Pins Applications

• Consumer electronics internal wiring
• Board-to-cable interconnections
• Wire-to-board signal transmission

Headers, Male Pins Procurement Notes

Verify that the specific part number suffix matches the required contact configuration and insulation material specifications. Confirm RoHS3 compliance status if restricted substances are a constraint. Ensure the ordering quantity aligns with the manufacturer's standard packaging requirements to avoid partial reel issues. Cross-reference the datasheet for precise dimensional tolerances before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for three circuits. The 2.50mm pitch suits dense layouts where space is limited. Consider the 3A current rating for power distribution needs. Verify that the operating temperature range meets the environmental conditions of the target application. Ensure mating connectors match the specified pin count and housing style.

Headers, Male Pins Part Context

This connector belongs to the CI25 series, which focuses on wire-to-board solutions for consumer electronics. The series emphasizes compact design and reliable performance in space-constrained environments. Components in this line typically feature halogen-free materials and robust shielding. The CI25 series supports various pin counts and mounting styles to accommodate diverse circuit board architectures.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
