CI2503P1V00-NH

Headers, Male Pins Overview

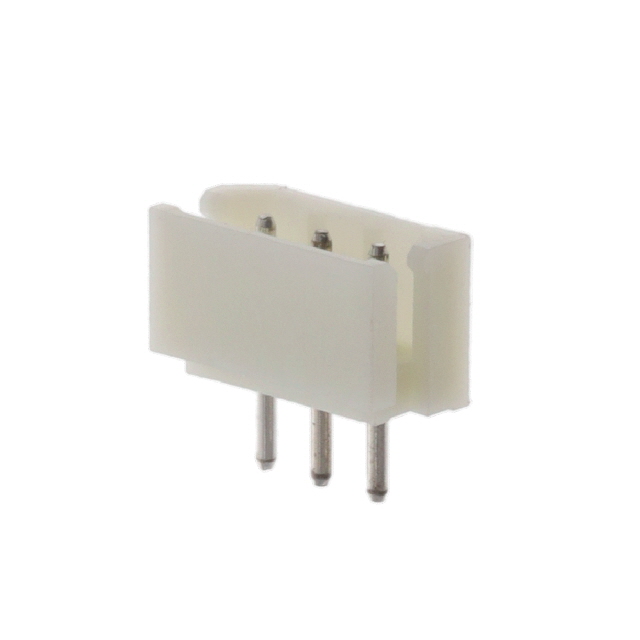

The CI2503P1V00-NH is a 3-position wire-to-board connector header from the Cvilux CI25 series. It features a 2.50mm (0.098 inch) mating pitch and utilizes male pin contacts with a circular shape. The component is designed for through-hole, right-angle mounting and employs solder termination. Rated for 3A current and 50VAC voltage, it operates within a temperature range of -25°C to 85°C. The housing is constructed from halogen-free polyamide (PA6T) with a UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Right-angle through-hole design for board-to-wire interconnection
• Four-wall shrouded housing for polarized alignment
• Halogen-free polyamide insulation material
• Tin-plated brass contacts for reliable conductivity

Headers, Male Pins Applications

• Consumer electronics internal wiring
• Industrial control panel connections
• General-purpose PCB to cable interfaces

Headers, Male Pins Procurement Notes

Verify that the specific part number suffix matches the required configuration, as variations in packaging or plating may exist across different distributors. Confirm RoHS3 compliance status directly with the manufacturer documentation prior to integration into regulated assemblies. Ensure the ordering quantity aligns with standard manufacturing pack sizes to avoid handling discrepancies during production assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for space-constrained designs. The 2.50mm pitch offers a balance between density and ease of manual assembly. Consider the 3A current rating against the total load requirements of the circuit. The natural color housing allows for easy visual inspection of the connection points on the printed circuit board.

Headers, Male Pins Part Context

This connector belongs to the CI25 series, which provides a comprehensive range of wire-to-board solutions. The series includes various positions and orientations to support diverse electronic assembly needs. The CI2503P1V00-NH specifically addresses applications requiring a compact, three-channel interface with robust mechanical retention and electrical stability.

Headers, Male Pins Replacement Considerations

The CI2504P1H00-NH serves as a verified substitute within the same series, offering identical electrical characteristics and mechanical dimensions but with four positions instead of three. Users must adjust their harness or cable assembly length accordingly to accommodate the additional contact point while maintaining the same 2.50mm pitch compatibility.
