CI2504P1H00-NH

Headers, Male Pins Overview

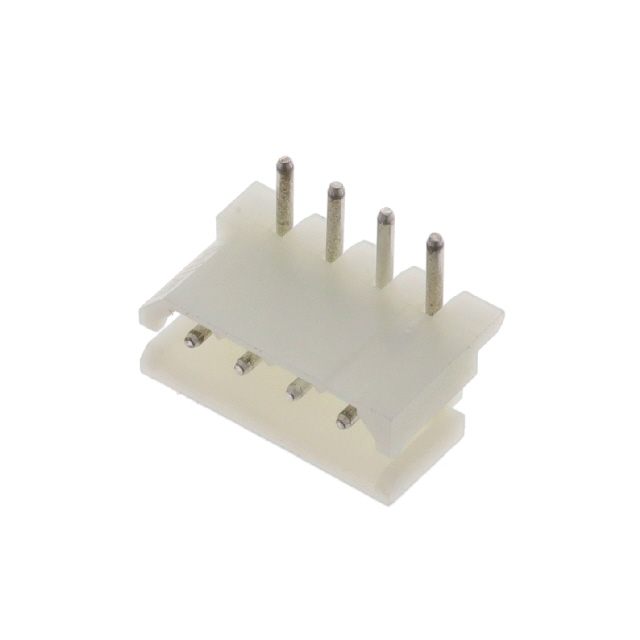

The CI2504P1H00-NH is a 4-position wire-to-board connector header from the Cvilux CI25 series. It features a 2.50mm (0.098 inch) mating pitch and right-angle through-hole mounting style. The connector utilizes brass contacts with tin plating, housed in natural-colored PA6T insulation reinforced with glass fiber. Rated for 3A current and 50VAC voltage, it operates within a temperature range of -25°C to 85°C. The design includes a four-wall shrouded housing and pin-lock fastening type.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration for PCB integration
• Four-wall shrouded housing design for alignment and protection
• Halogen-free PA6T insulation material with UL94 V-0 flammability rating
• Tin-plated brass contacts ensuring reliable electrical connection

Headers, Male Pins Applications

• Wire-to-board interconnections in consumer electronics
• Internal wiring harnesses for industrial control systems
• Signal transmission in automotive electronic modules
• Power distribution in low-voltage appliance circuits

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 4-position count and 2.50mm pitch specifications. Confirm compliance with RoHS3 directives and REACH regulations as stated in official documentation. Ensure the tin plating thickness meets application requirements for corrosion resistance. Check for any specific handling instructions regarding moisture sensitivity level classification during storage and assembly processes.

Headers, Male Pins Selection Notes

Select this component when a right-angle, shrouded header with a 2.50mm pitch is required for board-to-wire connections. Consider the 3A current rating and 50VAC voltage limit to ensure compatibility with circuit demands. Evaluate the operating temperature range of -25°C to 85°C against environmental conditions. Compare physical dimensions, such as the 4.90mm insulation height, against available PCB space constraints.

Headers, Male Pins Part Context

This component belongs to the CI25 series of wire-to-board connectors manufactured by Cvilux USA. The series offers various position counts and configurations while maintaining consistent 2.50mm spacing. These headers are designed for general-purpose electronic applications requiring robust mechanical stability and reliable electrical performance in compact spaces.

Headers, Male Pins Replacement Considerations

The 25SH-E-04-TR from Adam Tech is listed as a similar substitute option. Verify dimensional compatibility and electrical ratings before substitution. Ensure the replacement maintains the same right-angle through-hole mounting style and shrouded housing design.
