CI2504P1V00-NH

Headers, Male Pins Overview

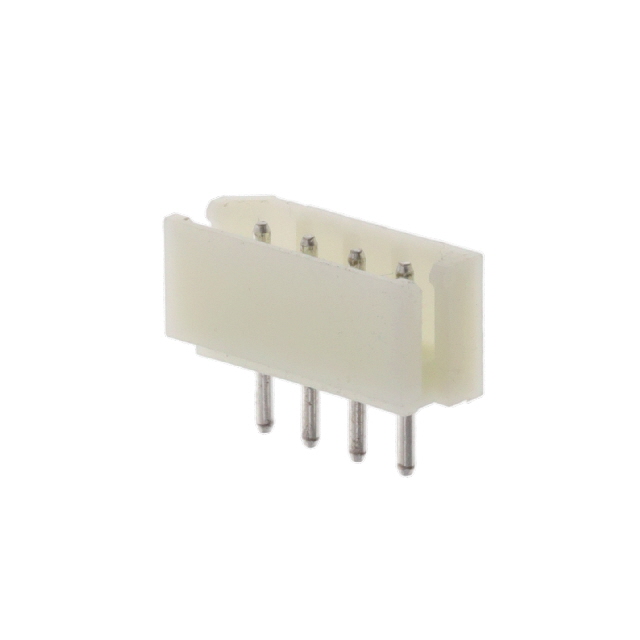

The CI2504P1V00-NH is a 4-position rectangular connector header manufactured by Cvilux USA. It features a 2.50mm (0.098 inch) pitch and is designed for through-hole mounting on printed circuit boards. The component supports a current rating of 3A with a voltage capacity of 250V. The housing is constructed from halogen-free polyamide (PA6T), which provides a UL94V-0 flame retardant rating. Contact posts are made of brass with a tin finish to ensure reliable electrical conductivity.

Headers, Male Pins Feature Summary

• Halogen-free insulation material for environmental compliance
• Through-hole termination method for secure board attachment
• Tin-plated brass contacts for corrosion resistance
• UL94V-0 rated polyamide housing for thermal stability

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board connections
• General electronic device assembly
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix NH indicates halogen-free composition as documented in official specifications. Confirm that the tin contact finish matches application requirements for solderability and oxidation resistance. Ensure the through-hole mounting style aligns with the target PCB layout design. Cross-reference the 4-position count and 2.50mm pitch against schematic definitions to prevent mating incompatibilities with existing cable assemblies or headers.

Headers, Male Pins Selection Notes

Select this component when a halogen-free, through-hole header is required for 2.50mm pitch applications. The PA6T insulation offers suitable mechanical strength for standard industrial environments. Consider the 3A current rating against total circuit load requirements. Verify that the operating temperature range meets the specific deployment conditions. This part serves as a direct replacement for similar 4-position headers within the CI25 series family.

Headers, Male Pins Part Context

This component belongs to the CI25 series of rectangular connectors from Cvilux USA. The series includes various position counts and termination styles. The CI2504P1V00-NH specifically denotes a 4-position variant with natural color housing. It is distinct from lead-free LF variants by its halogen-free material specification. The series is widely used in consumer electronics and industrial equipment requiring reliable wire-to-board connections.

Headers, Male Pins Replacement Considerations

The CI2504P1V00-LF is an equivalent part number within the same series. Both share identical physical dimensions and electrical characteristics. The primary distinction lies in the material certification regarding halogen content. Verify that the target application accepts halogen-free materials if substituting with the LF variant. Ensure mating compatibility with existing cables remains unchanged.
