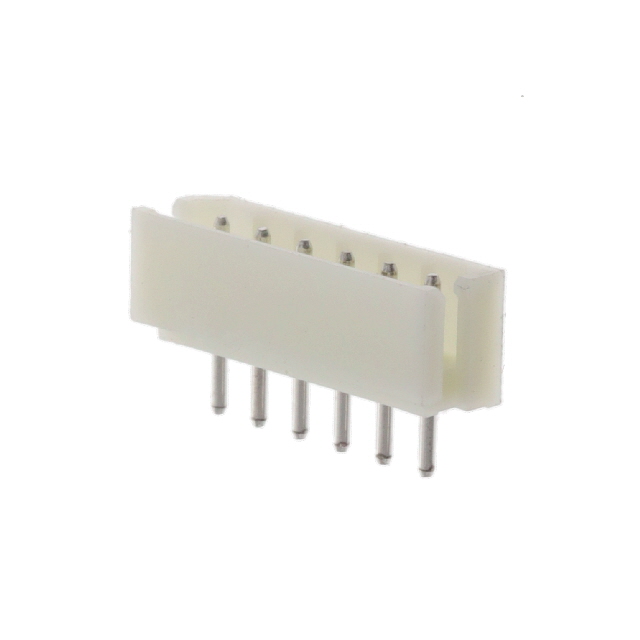

CI2506P1V00-NH is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Cvilux USA. Its product description is 6 POS 2.50MM (.098) WIRE TO BOAR. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for CI2506P1V00-NH
- Description：6 POS 2.50MM (.098) WIRE TO BOAR
- Series：-
- Mfr：Cvilux USA
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.098" (2.50mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Detent Lock
- Contact Length - Mating：-
- Contact Length - Post：0.134" (3.40mm)
- Overall Contact Length：0.350" (8.89mm)
- Insulation Height：0.232" (5.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：120.0µin (3.05µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Features：-
- Operating Temperature：-25°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：3A
- Voltage Rating：50VAC
Headers, Male Pins datasheet and documents for CI2506P1V00-NH
Headers, Male Pins Overview
The CI2506P1V00-NH is a 6-position rectangular connector header from the Cvilux USA CI25 series. It features a 2.50mm (0.098 inch) pitch and is designed for through-hole mounting. The housing is natural-colored polyamide, rated for UL94V-0 flammability. Electrical specifications include a current rating of 3A and a voltage rating of 50VAC. Contact material is brass with a post-plating thickness of 120.0µin (3.05µm).
Headers, Male Pins Feature Summary
- Through-hole assembly type compatible with wave soldering processes.
- Friction lock fastening mechanism secures mating connections.
- Constructed from natural polyamide insulation material.
Headers, Male Pins Applications
- Consumer electronics interconnects
- General PCB signal routing
- Low-voltage power distribution
Headers, Male Pins Procurement Notes
Verify that the specific part number matches the required pin count and pitch for your design. Confirm that the 3A current rating and 50VAC voltage limits are sufficient for the target application environment. Ensure compatibility with standard wave soldering profiles as indicated by the assembly type.
Headers, Male Pins Selection Notes
Select this component when a 6-position, 2.50mm pitch header is required for through-hole PCB integration. Consider the 3A current capacity and 50VAC rating against circuit demands. Verify that the natural color and UL94V-0 flame retardant rating meet project specifications.
Headers, Male Pins Part Context
This component belongs to the CI25 series of rectangular connectors manufactured by Cvilux USA. The series focuses on consumer electronics applications, offering various position counts and mounting styles. The CI2506P1V00-NH specifically provides a 6-position configuration within this standardized product line.
Headers, Male Pins Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other 6-position, 2.50mm pitch headers only if electrical and mechanical parameters are verified to be identical.
Headers, Male Pins FAQ
What is the contact plating thickness?
The contact finish thickness post is 120.0µin (3.05µm).
Is the connector surface mount or through-hole?
It is a through-hole connector designed for wave soldering assembly.
