CI4406M1HR0-NH

Headers, Male Pins Overview

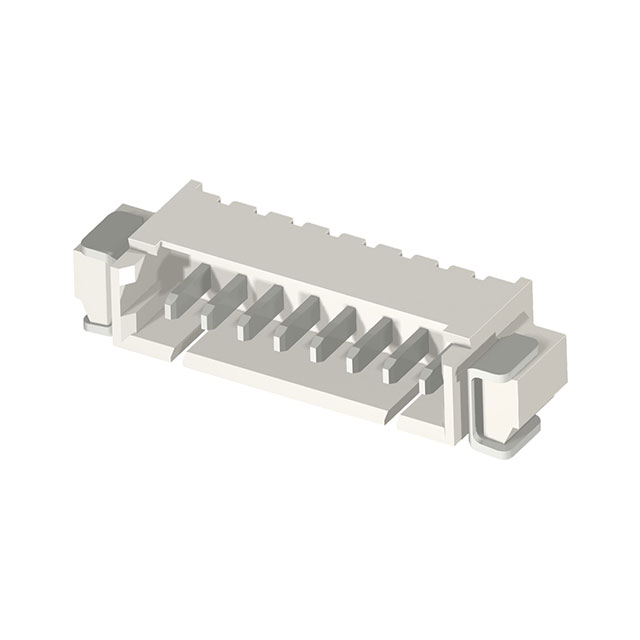

The CI4406M1HR0-NH is a surface-mount, right-angle header manufactured by Cvilux USA. It features six positions with a 0.049-inch (1.25mm) pitch. The connector utilizes phosphor bronze contacts with tin plating and PA6T insulation rated UL94 V-0. It operates within a temperature range of -40°C to 85°C, supporting 1A current at 125VAC. The housing is natural-colored with three-wall shielding.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact PCB integration
• Three-wall shielding provides enhanced signal protection
• Fixed solder tail ensures stable mechanical attachment

Headers, Male Pins Applications

• Wire-to-board interconnections in consumer electronics
• Signal routing in industrial control modules
• Internal connections in automotive electronic systems

Headers, Male Pins Procurement Notes

Verify the specific suffix HR0 indicates right-angle orientation and confirm PA6T insulation compatibility with your assembly process. Ensure the three-wall shielding requirement matches your PCB layout constraints. Cross-reference the RoHS3 compliance status with your environmental regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when right-angle mounting is required for space-constrained designs. The 1.25mm pitch suits moderate-density applications. Consider the fixed solder tail for robustness during wave soldering. Evaluate the 1A rating against peak load requirements to ensure reliable electrical performance under thermal stress conditions.

Headers, Male Pins Part Context

This part belongs to the CI44 series of rectangular connectors from Cvilux USA. It pairs with corresponding receptacle housings like the CI4406S0000-NH. The series offers various pin counts and orientations, providing modular connectivity solutions for diverse electronic assembly needs across multiple industries.

Headers, Male Pins Replacement Considerations

• CI4406M1VR0-NH
