CIB05J100NC

Chip Ferrite Bead Overview

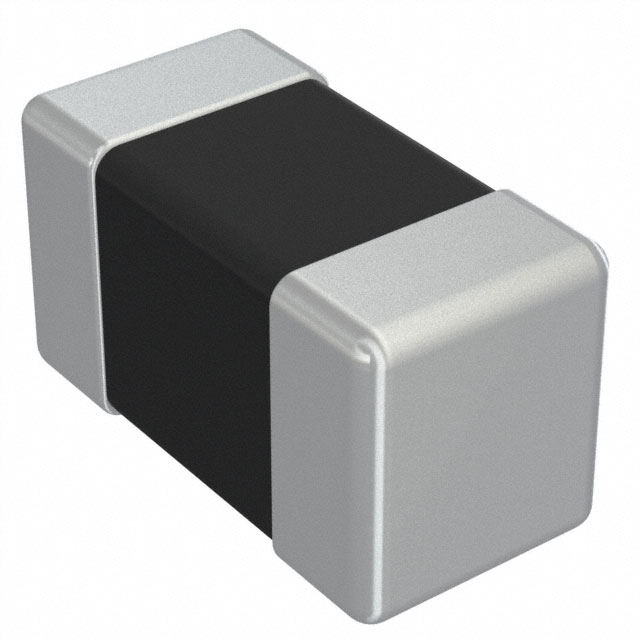

The Samsung Electro-Mechanics CIB05J100NC is a single-line ferrite bead chip component designed for surface-mount applications. It features a 0402 (1005 metric) package with dimensions of 1.00mm length and 0.50mm width, and a maximum height of 0.55mm. The device provides an impedance of 10 Ohms at 100 MHz and has a maximum DC resistance of 50 milliohms. It supports a rated current of 1.2A and operates within a temperature range of -55°C to 125°C. This component is part of the CIB05 series and is RoHS3 compliant.

Chip Ferrite Bead Feature Summary

• Provides electromagnetic interference suppression through high-impedance characteristics at target frequencies
• Designed for compact surface-mount integration in space-constrained circuit layouts
• Maintains stable electrical performance across a wide industrial temperature range

Chip Ferrite Bead Applications

• High-frequency noise filtering in portable electronic devices
• Signal integrity protection in data transmission lines
• Power line filtering in automotive electronics modules

Chip Ferrite Bead Procurement Notes

Verify component status as obsolete before procurement planning. Confirm availability of qualified replacement parts such as Murata BLM15AG100SN1D. Ensure design files are updated to reflect end-of-life status. Check RoHS3 compliance documentation for regulatory adherence. Validate package dimensions against existing PCB footprints to prevent assembly errors during transition.

Chip Ferrite Bead Selection Notes

Select this component for applications requiring 10 Ohm impedance at 100 MHz in a 0402 footprint. Ensure the circuit current does not exceed 1.2A to maintain reliability. Verify that the low DC resistance of 50 milliohms meets voltage drop requirements. Consider the operating temperature range of -55°C to 125°C for environmental suitability. Evaluate alternative components if continuous supply is required due to obsolescence.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the CIB05 series from Samsung Electro-Mechanics, focusing on passive components for signal conditioning. The series emphasizes miniaturization and high-performance filtering for modern electronics. As an obsolete part, it represents previous generations of chip beads used in various consumer and industrial applications before newer alternatives were introduced.

Chip Ferrite Bead Replacement Considerations

Murata Electronics BLM15AG100SN1D is a documented substitute. Verify pin compatibility and impedance curves before implementation.
