CIB10P220NC

Chip Ferrite Bead Overview

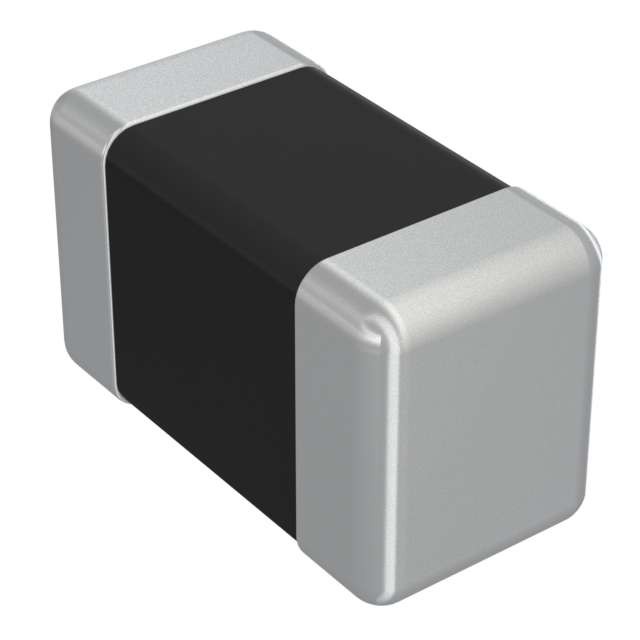

Samsung Electro-Mechanics CIB10P220NC is a surface-mount ferrite bead in a 0603 package. It exhibits an impedance of 26Ω at 100MHz and supports a rated current of 1.5A. The component has a low DC resistance of 50mΩ and operates within a temperature range of -55°C to +125°C. Physical dimensions are 1.60mm x 0.80mm with a height of 0.95mm. It features two pins and holds Moisture Sensitivity Level 1.

Chip Ferrite Bead Feature Summary

• Provides electromagnetic interference suppression through high-frequency impedance characteristics
• Designed for surface-mount technology integration on printed circuit boards
• Constructed for operation across extended industrial temperature ranges

Chip Ferrite Bead Applications

• Noise filtering in mobile communication devices
• Signal integrity management in computer chip components
• Electromagnetic compatibility enhancement in optical devices

Chip Ferrite Bead Procurement Notes

Verify the manufacturing status before procurement as this specific part number may be discontinued or subject to non-cancelable terms. Confirm RoHS compliance requirements against current project specifications. Ensure the 0603 footprint matches the design layout. Validate that the 1.5A current rating meets the circuit's operational demands. Check for any applicable tariffs if shipping to the United States.

Chip Ferrite Bead Selection Notes

Select this component when a compact 0603 ferrite bead is required for noise suppression in space-constrained designs. The 26Ω impedance at 100MHz suits general high-frequency filtering needs. The 1.5A current handling capability allows use in power lines or signal paths with moderate current loads. Consider the low DC resistance to minimize voltage drop in sensitive circuits.

Chip Ferrite Bead Part Context

This ferrite bead belongs to Samsung Electro-Mechanics' passive component portfolio, which includes MLCCs and inductors. The manufacturer specializes in high-reliability electronic parts for automotive, mobile, and computing sectors. The CIB series represents their standard line of chip-type ferrite beads designed for general-purpose electromagnetic interference suppression in modern electronic assemblies.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify availability of alternative ferrite beads from other manufacturers if this component is discontinued. Ensure replacement parts match the 0603 package size, 26Ω impedance, and 1.5A current rating.
