CIB32P600NE

Chip Ferrite Bead Overview

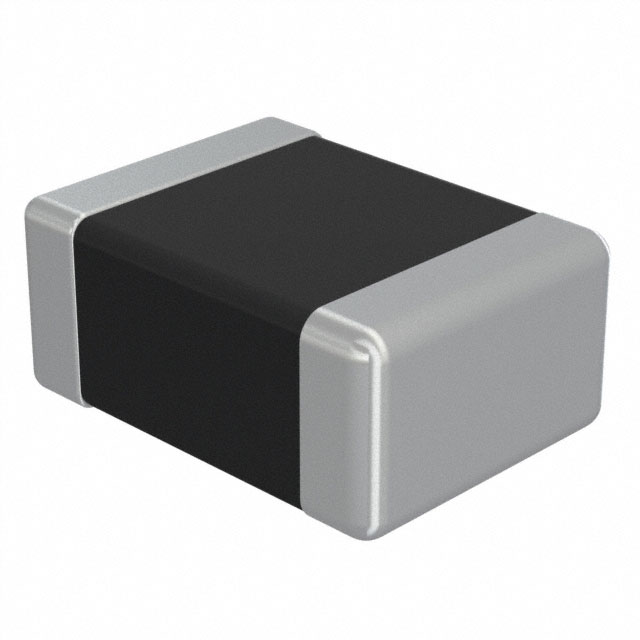

The Samsung Electro-Mechanics CIB32P600NE is a single-line ferrite bead component designed for surface mount applications. It features a 1210 (3225 Metric) package and utilizes ferrite material to suppress electromagnetic interference. The device exhibits an impedance of 60 Ohms at 100 MHz, with a maximum DC resistance of 20 mOhm and a current rating of 1.5A. It operates within a temperature range of -55°C to 125°C and complies with RoHS standards.

Chip Ferrite Bead Feature Summary

• Provides high-frequency noise suppression through ferrite core technology
• Supports surface mount assembly for automated manufacturing processes
• Ensures environmental compliance with lead-free and RoHS standards

Chip Ferrite Bead Applications

• High-speed digital signal line filtering in consumer electronics
• Power supply input/output decoupling in portable devices
• EMI suppression in automotive electronic control units

Chip Ferrite Bead Procurement Notes

Verify the obsolete part status before procurement planning. Confirm availability through authorized distributors or approved substitute sources. Ensure compatibility with existing PCB footprints and reflow soldering profiles. Check for RoHS compliance documentation if required by specific regional regulations. Validate that the 1210 package dimensions match the design constraints.

Chip Ferrite Bead Selection Notes

Select this component when a 60 Ohm impedance at 100 MHz is required for noise attenuation. Consider the 1.5A current rating and 20 mOhm DCR for power handling needs. The 1210 package size offers a balance between performance and board space. Evaluate thermal stability requirements against the -55°C to 125°C operating range. Compare alternative ferrite beads with similar impedance curves and current capabilities.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the CIB32 series from Samsung Electro-Mechanics, a manufacturer specializing in passive components. The series focuses on EMI suppression for various electronic circuits. Samsung Electro-Mechanics produces these components using precision materials and manufacturing techniques to ensure consistent electrical characteristics across production batches.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult manufacturer catalogs for equivalent ferrite beads with matching 60 Ohm @ 100MHz impedance, 1210 package, and 1.5A current rating.
