CIGT1608R6EH1R0MNC

Fixed Inductors Overview

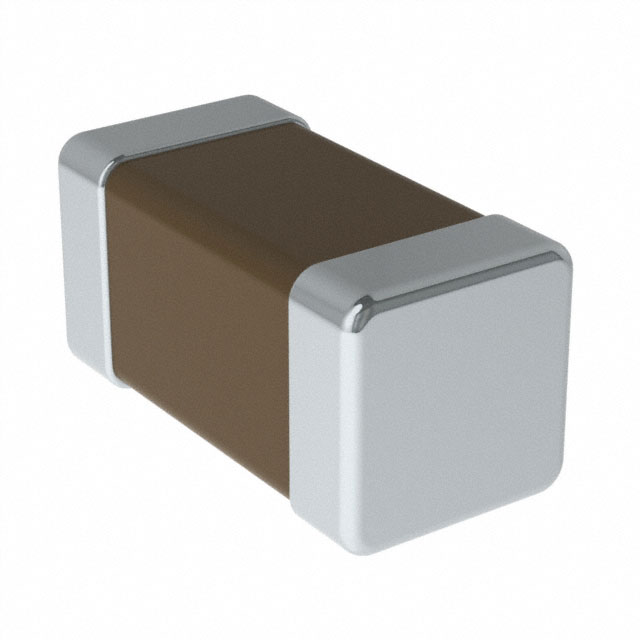

The CIGT1608R6EH1R0MNC is a shielded thin film power inductor manufactured by Samsung Electro-Mechanics. It features a fixed inductance of 1 µH with a tolerance of ±20%. The component is designed for surface mount technology (SMD/SMT) installation within the 0603 (1608 metric) package dimensions, measuring 1.6 mm in length, 0.8 mm in width, and 0.65 mm in height. It exhibits a maximum DC resistance of 160 mΩ and supports a rated current of 1.7 A. The device operates reliably within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Utilizes thin film construction for high stability and performance in high-frequency environments.
• Incorporates a shielded design to minimize electromagnetic interference and magnetic flux leakage.
• Employs metal composite material for the magnetic core to enhance saturation characteristics.

Fixed Inductors Applications

• Power supply circuits requiring compact energy storage
• Signal filtering in high-frequency electronic systems
• DC-DC converter modules for portable devices

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official Samsung Electro-Mechanics documentation to ensure correct packaging and tolerance specifications. Confirm that the required operating temperature range aligns with the component's rated limits of -40°C to +125°C. Cross-reference the DCR and current ratings with circuit requirements to prevent thermal issues during operation.

Fixed Inductors Selection Notes

Select this component when space constraints necessitate a 0603 footprint while maintaining high current handling capabilities. The thin film technology offers superior stability compared to standard wire-wound alternatives. Ensure the application frequency matches the 1 MHz test frequency specified for inductance measurement to guarantee accurate performance.

Fixed Inductors Part Context

This part belongs to the CIGT series of power inductors from Samsung Electro-Mechanics. The series emphasizes thin film technology, providing high reliability and low inductance variation over temperature. It is categorized under passive components, specifically fixed power inductors intended for surface mount applications in modern electronics.

Fixed Inductors Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic cross-references may not match the thin film construction or shielding characteristics. Verify dimensional compatibility and electrical parameters before replacing the original component.

Fixed Inductors FAQ

What is the testing frequency for the inductance specification?

The inductance value of 1 µH is measured at a frequency of 1 MHz.

Is the inductor shielded?

Yes, the CIGT1608R6EH1R0MNC is a shielded power inductor designed to contain magnetic fields.
