CIGW404012GM4R7MLE

Fixed Inductors Overview

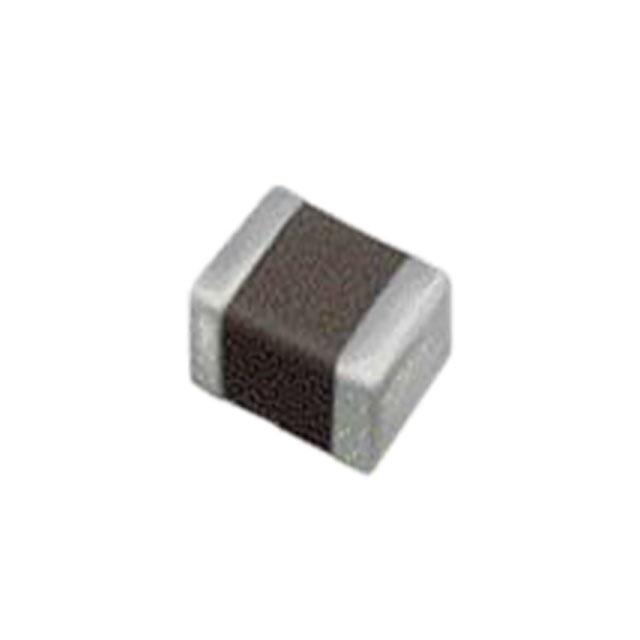

The CIGW404012GM4R7MLE is a shielded surface-mount power inductor from Samsung Electro-Mechanics, designed for high-current applications. It features a metal composite core and wire-wound construction within a 1616 (4040 metric) package measuring 4.0mm x 4.0mm x 1.2mm. The component provides an inductance of 470 nH with a tolerance of ±20%. Key electrical specifications include a maximum DC current rating of 12.7 A, a saturation current of 12.8 A, and a maximum DC resistance of 6.9 mOhms. It operates reliably within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Shielded design minimizes electromagnetic interference for stable circuit performance.
• Metal composite core material supports high saturation current capabilities.
• Low DC resistance reduces power loss and thermal generation during operation.

Fixed Inductors Applications

• Power management circuits in computing systems
• Server infrastructure power supplies
• High-density point-of-load conversion modules

Fixed Inductors Procurement Notes

Verify the complete part number against official Samsung Electro-Mechanics documentation to ensure correct suffix identification. Confirm that the specific ordering suffix matches the required packaging format and tolerance specifications. Cross-reference the manufacturer's latest datasheet to validate compliance with RoHS3 standards and environmental regulations before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a compact 1616 footprint is required alongside high current handling exceeding 12 Amperes. The low DC resistance makes it suitable for efficiency-critical designs where thermal management is constrained. Ensure the target application frequency aligns with the 470 nH value and that the operating environment stays within the specified -40°C to +125°C range.

Fixed Inductors Part Context

This component belongs to the CIGW series of power inductors manufactured by Samsung Electro-Mechanics. The series utilizes metal composite technology to achieve high performance in small surface-mount packages. These inductors are engineered for modern electronics requiring reliable energy storage in tight spatial constraints.

Fixed Inductors Replacement Considerations

Consult official substitution guides for compatible alternatives within the same series or package size. Verify that any substitute maintains equivalent saturation current and DC resistance ratings to prevent circuit performance degradation.
