CIH02T2N7SNC

Fixed Inductors Overview

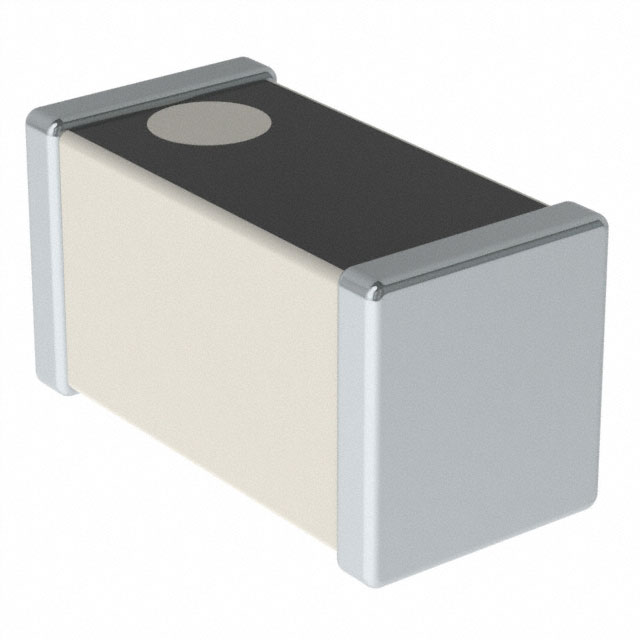

The Samsung Electro-Mechanics CIH02T2N7SNC is a multilayer ceramic inductor designed for surface-mount applications. It features an unshielded construction within a compact 01005 (0402 metric) package, facilitating high-density circuit board layouts. The component exhibits a nominal inductance of 2.7 nH and supports a maximum current rating of 200 mA. Its electrical characteristics include a maximum DC resistance of 800 mOhm, ensuring low power loss in signal paths. This device is engineered for stability in high-frequency environments typical of modern telecommunications and computing hardware.

Fixed Inductors Feature Summary

• Unshielded multilayer ceramic construction for minimal electromagnetic interference coupling
• Ultra-compact 01005 footprint optimized for space-constrained mobile and portable devices
• Low DC resistance profile supporting efficient power delivery in small form factor circuits

Fixed Inductors Applications

• RF matching networks in mobile communication modules
• Signal filtering in high-speed data transmission interfaces
• Power management circuits in portable consumer electronics

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm tolerance and packaging specifications. Ensure that the requested part number matches the exact inductance value and current rating required for the target application. Cross-reference the package dimensions with the design layout to guarantee mechanical compatibility during assembly processes.

Fixed Inductors Selection Notes

Select this component when ultra-low inductance values are required for high-frequency signal integrity. The unshielded design is suitable for applications where external magnetic shielding is managed by the system architecture. Consider the 200 mA current limit and 800 mOhm resistance when evaluating thermal performance and voltage drop in the specific circuit topology.

Fixed Inductors Part Context

Samsung Electro-Mechanics manufactures passive components including MLCCs, inductors, and chip resistors. The CIH series represents their line of multilayer ceramic inductors. These components support the company's focus on high-frequency wireless communication and precision mechanical technologies for next-generation electronic devices.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official substitution guide or distributor databases for equivalent unshielded 01005 inductors with matching 2.7 nH specifications.
