CIH03Q15NJNC

Fixed Inductors Overview

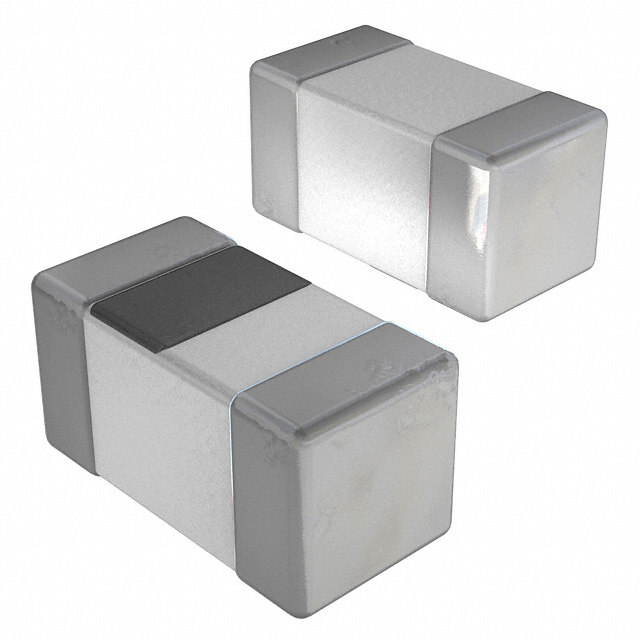

Samsung Electro-Mechanics CIH03Q15NJNC is a fixed surface-mount multilayer inductor with an inductance of 15 nH and a tolerance of ±5%. It features a maximum DC resistance of 890 milliohms and a rated current of 150 mA. The component operates within a temperature range of -55°C to 125°C and has a self-resonant frequency of 2.7 GHz. Packaged in a 0201 (0603 metric) footprint measuring 0.60mm x 0.30mm, it is RoHS compliant and currently subject to end-of-life status.

Fixed Inductors Feature Summary

• Unshielded multilayer chip inductor design for compact circuit integration
• High self-resonant frequency capability supporting high-frequency signal applications
• Compliant with RoHS3 environmental standards for lead-free manufacturing

Fixed Inductors Applications

• RF matching networks in mobile communication devices
• Impedance matching circuits in wireless transmission modules
• Filtering components in high-frequency signal processing paths

Fixed Inductors Procurement Notes

This component is officially designated as End of Life by Samsung Electro-Mechanics. Procurement should be approached with caution due to limited availability and potential supply chain discontinuation. Verify final stock quantities and last-time-buy dates directly with authorized distributors before committing to orders. Replacement strategies must be prioritized given the obsolescence notice.

Fixed Inductors Selection Notes

Select this part only if legacy compatibility or specific 15 nH unshielded characteristics are required for existing designs. Due to its discontinued status, alternative sourcing carries significant risk. Engineers should evaluate equivalent performance parameters from active series, ensuring identical inductance, current rating, and physical dimensions to maintain board integrity and electrical stability.

Fixed Inductors Part Context

The CIH03Q15NJNC belongs to Samsung Electro-Mechanics' CIH series of chip inductors. This series is designed for high-frequency applications requiring small form factors. The manufacturer specializes in passive electronic components, including MLCCs and power inductors, serving global markets in consumer electronics and telecommunications infrastructure.

Fixed Inductors Replacement Considerations

Public confirmed substitute: TDK MLG0603S15NJT000. This direct replacement offers similar 15 nH inductance and 0201 package dimensions. Verify current rating and DCR specifications against original requirements to ensure circuit compatibility during migration.
