CIH05T3N3SNC

Fixed Inductors Overview

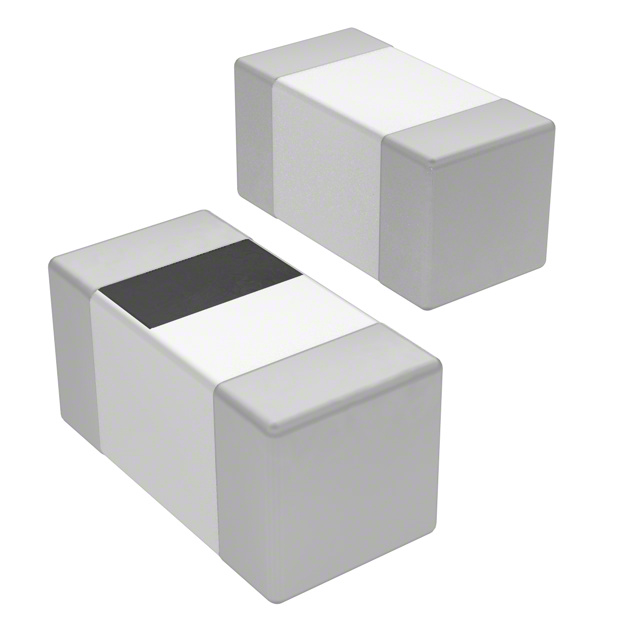

The CIH05T3N3SNC is a fixed multilayer ceramic inductor from Samsung Electro-Mechanics, designed for high-frequency applications. It features an inductance of 3.3 nH with a tolerance of ±0.3 nH. The component operates at a test frequency of 100 MHz, offering a Q factor of 8 and a self-resonant frequency of 6.7 GHz. It supports a maximum DC current of 300 mA and has a maximum DC resistance of 190 mΩ. Housed in a compact 0402 (1005 Metric) surface-mount package, it functions as an unshielded RF chip inductor suitable for precision circuit integration.

Fixed Inductors Feature Summary

• Multilayer ceramic construction optimized for high-frequency signal integrity
• Compact 0402 surface-mount footprint for dense PCB layouts
• High Q-factor performance at 100 MHz for efficient RF operation

Fixed Inductors Applications

• RF matching networks in mobile communication devices
• Impedance matching circuits in wireless modules
• High-frequency filtering in consumer electronics

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to ensure correct packaging and tolerance specifications. Confirm that the requested quantity aligns with available distribution channels, as this component may be subject to end-of-life status or limited availability. Cross-reference the manufacturer part number with authorized distributors to guarantee authenticity and traceability before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a precise 3.3 nH inductance is required in a minimal 0402 footprint. Ensure the application current does not exceed 300 mA to maintain performance within specified DC resistance limits. Consider the unshielded nature of the device for layout planning to minimize parasitic coupling in sensitive high-frequency designs.

Fixed Inductors Part Context

This inductor belongs to the CIH series of passive components manufactured by Samsung Electro-Mechanics. The series focuses on providing reliable multilayer ceramic solutions for modern electronic devices. This specific model represents a standard value within the high-frequency inductor portfolio, supporting various consumer and industrial applications requiring small form factors.

Fixed Inductors Replacement Considerations

Direct substitute options include the AIMC-0402-33NJ-T from Abracon LLC. Verify electrical compatibility and physical dimensions before substitution.
