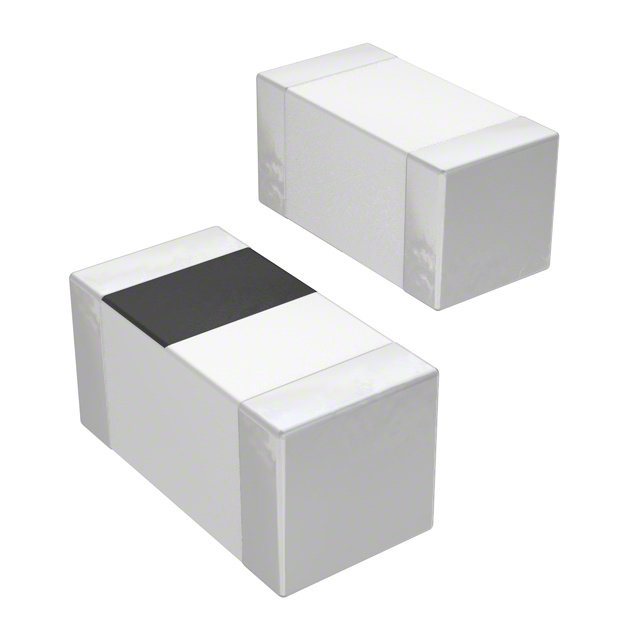

CIH10T3N3SNC

Description：FIXED IND 3.3NH 800MA 120MOHM SM
Series：CIH10T
Mfr：Samsung Electro-Mechanics
Package：Tape & Reel (TR)

SKU:764c7c370ee6 Category: Fixed Inductors Brand: Samsung Electro-Mechanics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CIH10T3N3SNC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Samsung Electro-Mechanics. Its product description is FIXED IND 3.3NH 800MA 120MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CIH10T3N3SNC

Description：FIXED IND 3.3NH 800MA 120MOHM SM
Series：CIH10T
Mfr：Samsung Electro-Mechanics
Package：Tape & Reel (TR)
Type：Multilayer
Material - Core：-
Inductance：3.3 nH
Tolerance：±0.3nH
Current Rating (Amps)：800 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：120mOhm Max
Q @ Freq：10 @ 100MHz
Frequency - Self Resonant：6GHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Supplier Device Package：-
Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)：-
Features：-

Fixed Inductors datasheet and documents for CIH10T3N3SNC

CIH10T3N3SNC

Fixed Inductors Overview

The CIH10T3N3SNC is a fixed multilayer inductor from Samsung Electro-Mechanics, designed for surface-mount applications. It features an inductance of 3.3 nH with a tolerance of ±0.3nH and operates at a test frequency of 100 MHz. The component has a maximum DC resistance of 120 mOhm and a rated current of 800 mA. Housed in a 0603 (1608 Metric) package measuring 1.60mm x 0.80mm, it offers a self-resonant frequency of 10 GHz and a Q value of 8 at 100 MHz. It functions within a temperature range of -55°C to 125°C.

Fixed Inductors Feature Summary

Unshielded multilayer construction for high-frequency signal integrity
Ultra-low inductance design optimized for RF and microwave circuits
High self-resonant frequency capability up to 10 GHz

Fixed Inductors Applications

RF matching networks
Impedance matching circuits
High-frequency filtering applications

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet for final electrical characteristics, as this component may be subject to end-of-life notices or supply chain discontinuations. Confirm that the 0603 footprint and pin configuration match the target PCB layout requirements. Ensure compliance with RoHS3 standards and check for any recent product change notifications regarding material composition or manufacturing location changes before finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component when ultra-low inductance values are required for high-frequency circuit tuning. The 0603 package size provides a balance between miniaturization and handling ease compared to smaller footprints. Consider the 800 mA current rating and low DCR for power efficiency in signal paths. The unshielded design may require careful layout consideration to minimize electromagnetic interference with adjacent components.

Fixed Inductors Part Context

This part belongs to the CIH series of chip inductors manufactured by Samsung Electro-Mechanics. The series focuses on passive components for controlling signal flow in electronic circuits. Samsung Electro-Mechanics specializes in high-tech electronic parts, including MLCCs and inductors, supporting mobile communication and optical device applications.
