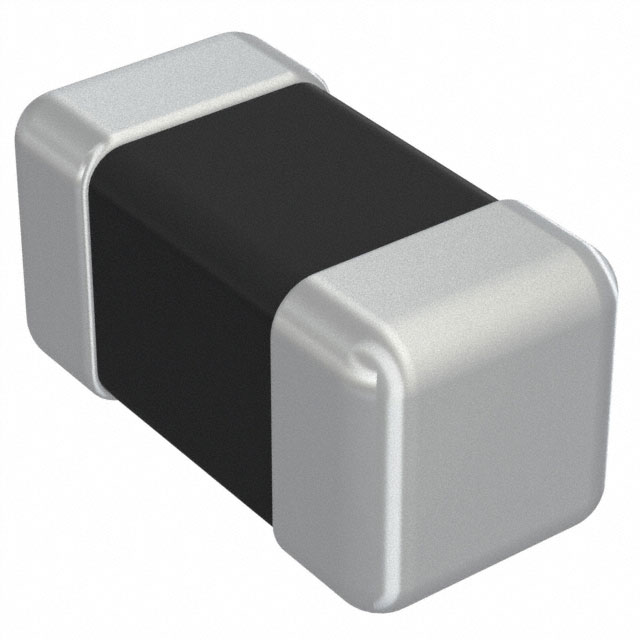

CIM03U601NC

Chip Ferrite Bead Overview

The Samsung Electro-Mechanics CIM03U601NC is a single-line ferrite bead designed for electromagnetic interference suppression in compact electronic circuits. Housed in a 0201 (0603 Metric) surface-mount package, it provides an impedance of 600 Ohms at 100 MHz. The component supports a maximum current rating of 100mA with a maximum DC resistance of 1.5 Ohms. It operates reliably within a temperature range of -55°C to 125°C and complies with RoHS3 standards.

Chip Ferrite Bead Feature Summary

• Provides high impedance attenuation for noise suppression in signal lines
• Compact 0201 footprint suitable for space-constrained designs
• Robust thermal performance across wide operating temperatures

Chip Ferrite Bead Applications

• High-speed data line filtering
• Power supply noise reduction
• RF circuit interference suppression

Chip Ferrite Bead Procurement Notes

Verify the specific ordering suffix and packaging configuration required for your assembly process. Confirm that the component meets all relevant environmental compliance standards for your target market. Ensure compatibility with standard surface-mount reflow soldering profiles. Check for any recent product change notices or end-of-life announcements from the manufacturer before finalizing procurement plans.

Chip Ferrite Bead Selection Notes

Select this component when low parasitic inductance and minimal DC resistance are critical for maintaining signal integrity in high-frequency applications. The 0201 size allows for dense PCB layouts. Ensure the 100mA current rating exceeds the maximum expected operational current to prevent saturation. Verify that the 600 Ohm impedance at 100 MHz aligns with the frequency spectrum of the noise being suppressed.

Chip Ferrite Bead Part Context

This part belongs to the CIB/CIM series of chip beads from Samsung Electro-Mechanics. These components are engineered for general-purpose EMI suppression in consumer electronics and telecommunications equipment. The series offers various impedance values and current ratings to suit different circuit requirements while maintaining consistent physical dimensions for design flexibility.

Chip Ferrite Bead Replacement Considerations

Direct substitutes include Würth Elektronik 7427920415, Pulse Electronics BBGK00201209601Y00, and Cal-Chip Electronics FB201209T-601Y-S-1. Verify impedance characteristics and current ratings match the original design specifications before substitution.
