CIS21P300NE

Chip Ferrite Bead Overview

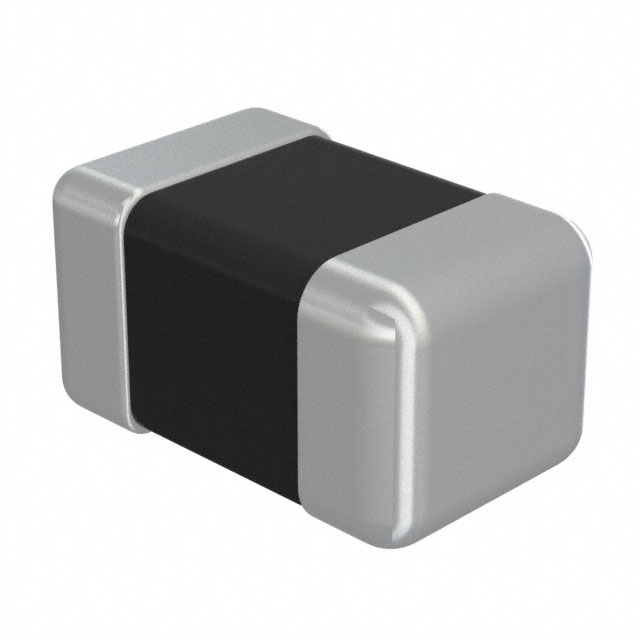

The CIS21P300NE is a single-line ferrite bead from the CIS series, designed for power line noise suppression. It features a 0805 (2012 metric) surface-mount package with dimensions of 2.00mm x 1.25mm and a maximum height of 1.10mm. The component provides an impedance of 30 Ohms at 100 MHz and supports a rated current of 6A. Its maximum DC resistance is 10 milliohms. It operates within a temperature range of -55°C to 125°C.

Chip Ferrite Bead Feature Summary

• Engineered for high-current applications with low DC resistance to minimize voltage drop in power lines.
• Provides effective electromagnetic interference suppression on single power lines.
• Constructed as a compact chip bead suitable for dense surface-mount layouts.

Chip Ferrite Bead Applications

• Noise suppression in high-current power supply lines
• Electromagnetic interference filtering in portable electronic devices
• Power line conditioning in automotive electronics

Chip Ferrite Bead Procurement Notes

This component is officially obsolete and no longer manufactured by Samsung Electro-Mechanics. Verification of availability should focus on parametric equivalents or surplus stock. Confirm that substitute parts meet the original 6A rating and 30 Ohm impedance specifications. Check RoHS compliance status if required for specific regulatory environments.

Chip Ferrite Bead Selection Notes

Select this part for circuits requiring high current handling capability in a small footprint. The low DC resistance is critical for maintaining efficiency in power delivery networks. Ensure the application frequency aligns with the 100 MHz impedance specification. Verify thermal management capabilities given the 6A current rating and operating temperature range.

Chip Ferrite Bead Part Context

The CIS21P300NE belongs to Samsung's CIS series, which specializes in ferrite beads for high-current applications. This series is distinguished by its ability to handle currents up to 6A while maintaining a small physical size. It serves as a passive filter component for suppressing noise in power lines across various industrial and consumer electronics.

Chip Ferrite Bead Replacement Considerations

The MPZ2012S300AT000 by TDK is listed as a parametric equivalent substitute. Verify mechanical compatibility and electrical parameters before adoption.

Chip Ferrite Bead FAQ

What is the maximum rated current for the CIS21P300NE?

The maximum rated current is 6A.

What is the impedance value at 100 MHz?

The impedance is 30 Ohms at 100 MHz.
