CIS41P600AE

Chip Ferrite Bead Overview

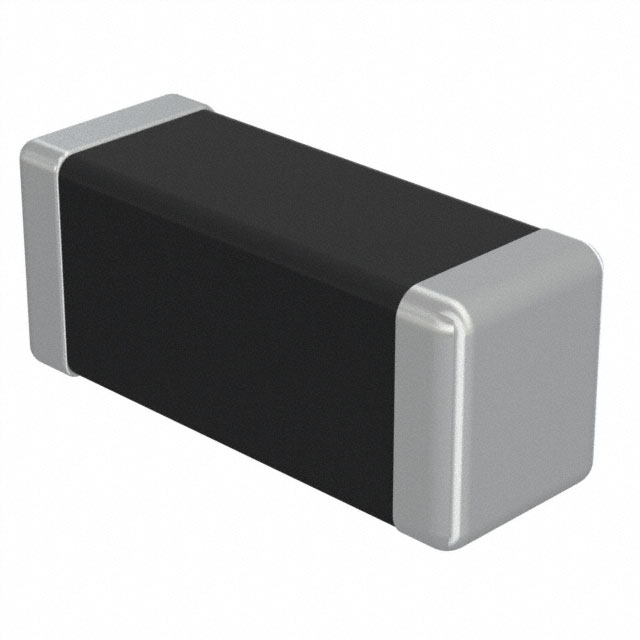

The CIS41P600AE is a surface-mount ferrite bead from the Samsung Electro-Mechanics CIS series, designed for power line filtering in a compact 1806 (4516 metric) package. It provides an impedance of 60 Ohms at 100 MHz with a maximum DC resistance of 10 mOhm and supports a continuous current rating of 6A. The component operates within a temperature range of -55°C to 125°C and features single-line configuration.

Chip Ferrite Bead Feature Summary

• High current handling capability suitable for power supply lines
• Low DC resistance minimizes voltage drop and power loss
• Compact 1806 footprint enables dense PCB layouts
• Wide operating temperature range ensures reliability in harsh environments

Chip Ferrite Bead Applications

• Power line EMI suppression in portable electronics
• Filtering noise on high-current DC power rails
• Signal integrity protection in automotive electronic modules
• Noise reduction in industrial control system power supplies

Chip Ferrite Bead Procurement Notes

Verify the exact suffix designation during procurement, as variations such as CIS41J600AE may indicate different manufacturing statuses or obsolete components. Confirm RoHS compliance and lead times with authorized distributors. Ensure the selected variant matches the required 6A current rating and 60 Ohm impedance specifications for your specific circuit design requirements.

Chip Ferrite Bead Selection Notes

Select this component when designing circuits requiring robust EMI filtering for high-current paths where space is limited. The 1806 package offers a balance between current capacity and board area. Ensure the application does not exceed the 6A continuous current rating to prevent thermal issues. Consider the 10 mOhm DCR impact on overall power efficiency in low-voltage systems.

Chip Ferrite Bead Part Context

This part belongs to the Samsung Electro-Mechanics CIS series of chip beads, which are engineered for effective electromagnetic interference suppression. The series includes various impedance values and current ratings tailored for different power line applications. The CIS41P600AE specifically targets high-current scenarios requiring stable performance across wide temperature ranges.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitutes include HI1806T600R-10, 742792410, BCMS451616A600, BLM41PG600SN1L, HCB 4516KF-600T60, and MH4516-600Y. Verify that alternative parts match the 60 Ohm impedance at 100 MHz, 6A current rating, and 1806 package dimensions before integration.
