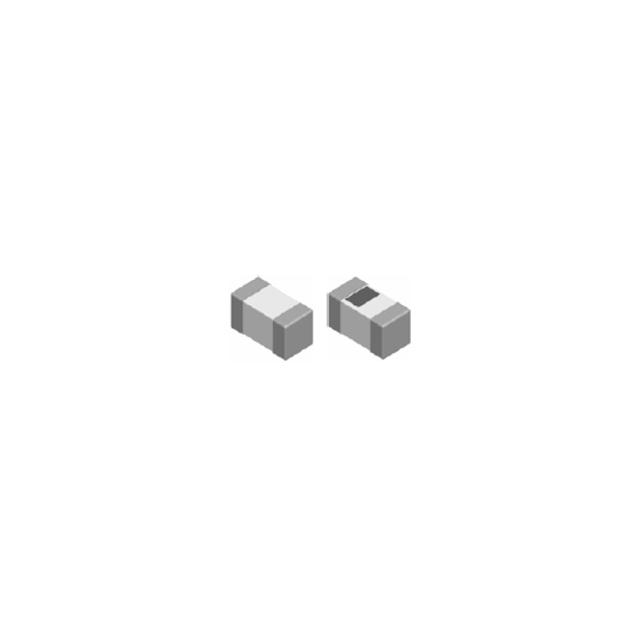

CL01JTQ10N-S is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Viking Tech. Its product description is FIXED IND 10NH 160MA 800MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CL01JTQ10N-S
- Description：FIXED IND 10NH 160MA 800MOHM SMD
- Series：CL-S
- Mfr：Viking Tech
- Package：Tape & Reel (TR)
- Type：Multilayer
- Material - Core：-
- Inductance：10 nH
- Tolerance：±5%
- Current Rating (Amps)：160 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：800mOhm Max
- Q @ Freq：13 @ 500MHz
- Frequency - Self Resonant：3.8GHz
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：500 MHz
- Mounting Type：Surface Mount
- Package / Case：0201 (0603 Metric)
- Supplier Device Package：201
- Size / Dimension：0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max)：0.014" (0.35mm)
- Features：-
Fixed Inductors datasheet and documents for CL01JTQ10N-S
