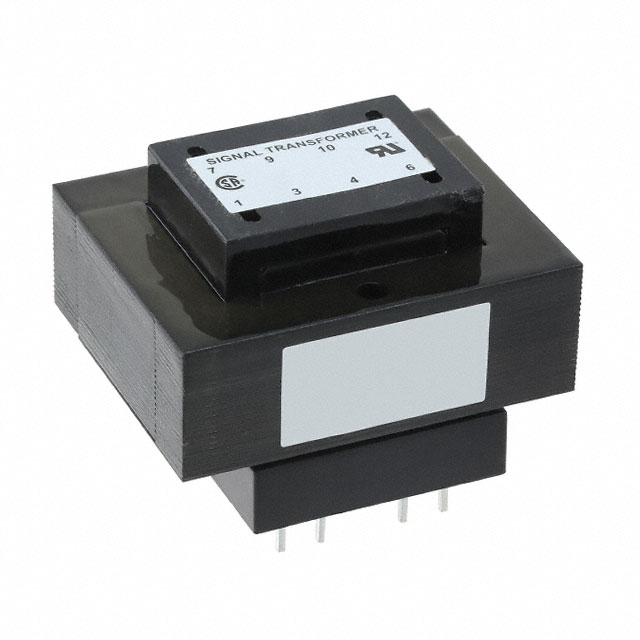

CL2-10R-24
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：PWR XFMR LAMINATED 10VA TH
- Series：CL2
- Mfr：Signal Transformer
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：24V
- Current - Output (Max)：420mA
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single
- Center Tap：No
- Power - Max：10VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：47.60mm L x 39.70mm W
- Height - Seated (Max)：34.90mm
- Voltage - Isolation：4000Vrms
- Weight：0.53 lb (240.4 g)
Download product information
Overview
The CL2-10R-24 is a laminated core power transformer manufactured by Signal Transformer. It features a single primary winding rated for 115 VAC or 230 VAC input and a single secondary winding providing 24 VAC output. The unit has a power rating of 10 VA with a maximum secondary current of 420 mA. Designed for through-hole mounting, it operates at frequencies of 50 Hz or 60 Hz. The transformer includes six terminals for connection and is classified as a Class 2 device.
Feature Summary
- Laminated core construction for efficient power transfer
- Dual primary voltage capability for global compatibility
- Through-hole terminal configuration for secure PCB integration
Applications
- Industrial control panel power supplies
- Electronic equipment requiring isolated low-voltage AC sources
- Class 2 compliant circuit implementations
Procurement Notes
Verify the specific datasheet version to confirm insulation class and safety certifications such as UL or CE before procurement. Ensure the selected variant matches the required primary voltage (115V vs 230V) if fixed-winding options exist in different SKUs. Confirm that the through-hole footprint aligns with the target PCB design constraints and thermal management requirements for continuous operation.
Selection Notes
Select this component when a compact, board-mount solution is needed for 10 VA applications. It is suitable for designs requiring galvanic isolation between mains and low-voltage circuits. Consider the physical dimensions and lead spacing against available board space. This transformer is appropriate for general-purpose AC power distribution where high efficiency is not the primary constraint compared to cost and size.
Part Context
This part belongs to the CL2 series of laminated core transformers from Signal Transformer. These components are designed for general-purpose power transformation in industrial and commercial electronics. The series offers various voltage configurations to support diverse application needs while maintaining standard form factors for easy integration into existing chassis or PCB layouts.
Replacement Considerations
Consult official cross-reference lists for direct equivalents. Verify that any substitute maintains identical electrical ratings, including 10 VA power, 24 VAC secondary, and compatible primary voltages. Ensure mechanical compatibility regarding terminal type and mounting style.
