CL2-30-24

Overview

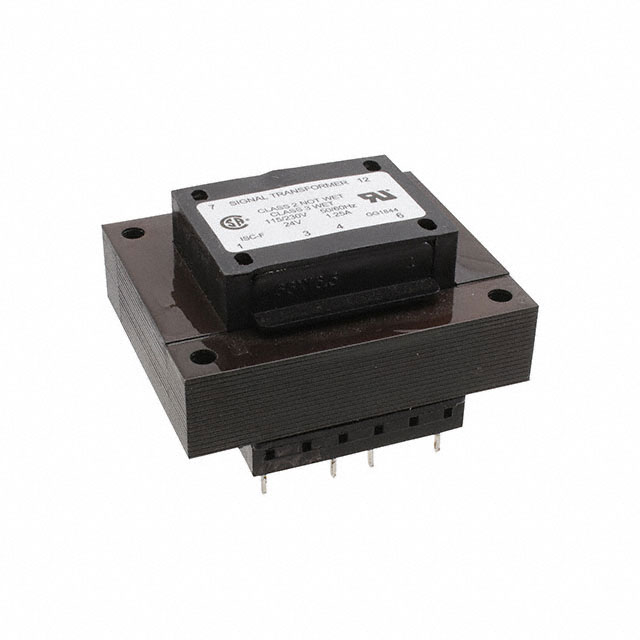

The CL2-30-24 is a laminated core power transformer manufactured by Signal Transformer. It features a 30 VA power rating with dual primary windings supporting 115 VAC and 230 VAC inputs. The secondary output provides 24 VAC at a current rating of 1.25 A. Designed for through-hole mounting, the component utilizes PC pin terminals for circuit board integration. It operates at standard frequencies of 50 Hz and 60 Hz and complies with RoHS standards.

Feature Summary

• Dual primary winding configuration supports multiple input voltage ranges
• Laminated core construction for efficient power transformation
• Through-hole mounting style with PC pin terminals

Applications

• Industrial control systems requiring isolated power supplies
• Electronic equipment needing 24V AC secondary outputs
• General purpose power conversion in PCB-based assemblies

Procurement Notes

Verify the manufacturer part number CL2-30-24 against official Signal Transformer documentation to confirm specifications. Ensure compatibility with the target printed circuit board layout regarding through-hole spacing and terminal dimensions. Check for specific RoHS compliance certificates if required by regulatory standards. Confirm that the 30 VA rating meets the thermal and electrical demands of the application design.

Selection Notes

Select this component when a 30 VA isolation transformer is required for chassis or panel mount applications using through-hole technology. The dual primary winding allows flexibility for 115 VAC or 230 VAC mains inputs without changing hardware. Ensure the physical footprint accommodates the PC pin pitch and that the 24 VAC secondary output aligns with downstream rectification or load requirements.

Part Context

This component belongs to the Signal Transformer power transformer series designed for industrial and commercial electronics. It serves as a step-down unit converting mains voltage to lower AC levels for subsequent processing. The model distinguishes itself through its specific 30 VA capacity and standardized through-hole form factor suitable for automated assembly processes.

Replacement Considerations

Cross-reference with other 30 VA through-hole transformers offering identical 24 VAC secondary outputs. Verify that substitute parts maintain the same dual primary winding capability and physical mounting dimensions to ensure mechanical fit.
