CL2-80-24

Overview

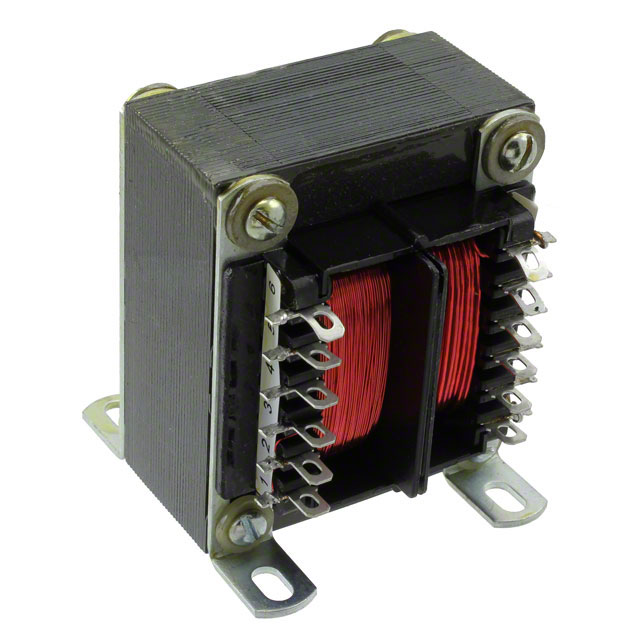

The Signal Transformer CL2-80-24 is a laminated core power transformer rated at 80VA. It features dual primary windings supporting 115V and 230V inputs at 50/60Hz. The secondary output provides 24V at 3.33A. Designed for chassis mounting, it utilizes solder lug terminals. The unit complies with Class 2 safety standards and RoHS regulations.

Feature Summary

• Dual primary winding configuration allows operation at either 115V or 230V input voltages.
• Chassis mount design with solder lug terminals for secure installation.
• Class 2 construction ensures compliance with low-voltage control safety standards.

Applications

• Low-voltage industrial control circuits
• Equipment requiring isolated 24V power supplies
• Chassis-mounted power distribution systems

Procurement Notes

Verify the specific terminal configuration and mounting hole dimensions against your enclosure requirements before procurement. Confirm that the 80VA rating meets the continuous load demands of your application. Ensure the chassis mounting style aligns with available space constraints in the final assembly design.

Selection Notes

Select this model when a robust laminated core transformer is required for 24V secondary applications. The dual primary capability simplifies inventory management for global deployments. Consider the chassis mount form factor if panel integration is preferred over board-level solutions.

Part Context

This component belongs to the CL2 series of Class 2 transformers manufactured by Signal Transformer. The series focuses on providing reliable isolation for control circuits. The CL2-80-24 specifically addresses the need for higher current capacity within the Class 2 limitation framework.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify that any replacement maintains the 80VA rating, 24V output, and chassis mount footprint to ensure mechanical and electrical compatibility without redesigning the host system.

FAQ

Can the primary windings be used simultaneously?

No, the primary windings are designed to be used for either 115V or 230V input, not simultaneously.

What is the insulation class of this transformer?

The CL2-80-24 is constructed as a Class 2 transformer, adhering to specific safety limitations for low-energy circuits.
