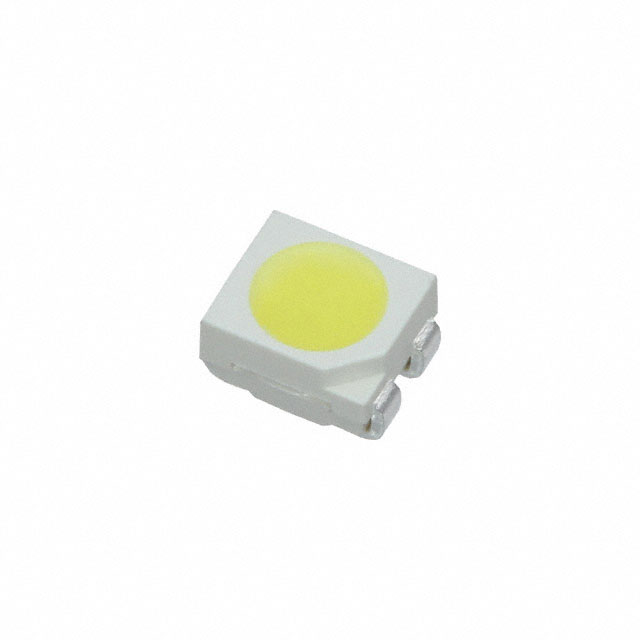

CLA2A-WKW-CXBZ0153

$0.32

Description：LED COOL WHITE DIFF 4PLCC SMD
Series：-
Mfr：Cree LED
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d11858539fb3 Category: LED Indication - Discrete Brand: Cree LED

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED COOL WHITE DIFF 4PLCC SMD
Series：-
Mfr：Cree LED
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White, Cool
Configuration：Standard
Lens Color：Yellow
Lens Transparency：Diffused
Millicandela Rating：3920mcd
Lens Style：Round with Flat Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：5500K
Wavelength - Peak：-
Features：-
Package / Case：4-PLCC
Supplier Device Package：4-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

Download product information

CLA2A-WKW-CXBZ0153

Overview

The CLA2A-WKW-CXBZ0153 is a white LED from Cree LED, featuring a 120-degree viewing angle and a forward voltage of 3.2V. It operates at a color temperature of 5500K with high brightness output.

Feature Summary

High brightness white light emission
Wide 120-degree viewing angle for broad illumination

Applications

General illumination lighting fixtures
Commercial indoor lighting applications
Residential lighting systems

Procurement Notes

Verify the exact suffix against official Cree LED documentation to confirm specific binning and optical characteristics. Ensure compatibility with standard SMD mounting processes and thermal management requirements for reliable operation in final assemblies.

Selection Notes

Select this component for designs requiring a compact white LED source with a wide beam distribution. The 3.2V forward voltage suits low-voltage driver architectures. Confirm that the 5500K color temperature aligns with the intended visual aesthetic and application standards.

Part Context

This part belongs to the Cree LED discrete indicator and general illumination portfolio. It utilizes surface-mount technology for automated assembly. The product line emphasizes reliability and consistent photometric performance across various environmental conditions.

Replacement Considerations

Consult official Cree LED substitution guides for direct equivalents. Verify pinout and thermal pad dimensions when considering alternative packages or series within the same manufacturer's lineup.
