Product Detailed Parameters
- Description：CMC 60UH 200MA 2LN SURFACE MOUNT
- Series：CLC
- Mfr：Eaton - Electronics Division
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：200mA
- DC Resistance (DCR) (Max)：1.7Ohm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.134" L x 0.063" W (3.40mm x 1.60mm)
- Height (Max)：0.087" (2.20mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：60 µH @ 100 kHz
- Impedance @ Frequency：-
Download product information
Overview

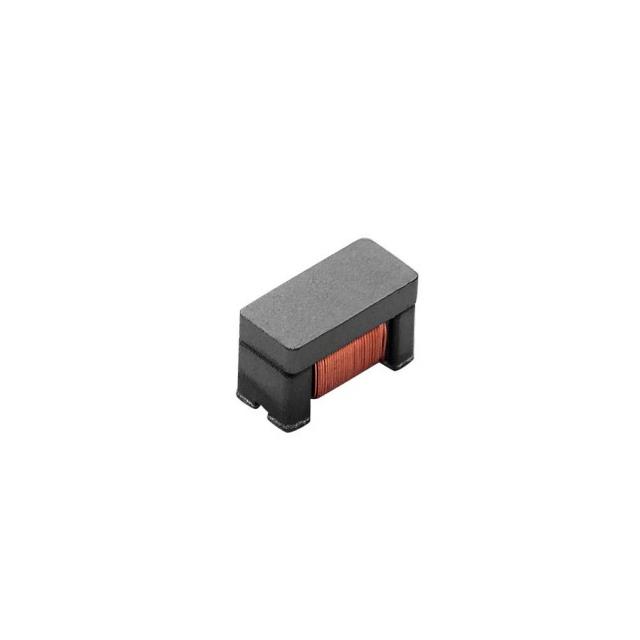

The Eaton CLCC2V3216-600-R is a surface-mount common mode inductor designed for signal integrity protection. It features an inductance of 60 µH at 100 kHz and supports a maximum DC current of 200 mA. The component exhibits a maximum DC resistance of 1.7 Ohms and withstands up to 50 V. Operating temperatures range from -40°C to +85°C. This two-line choke is engineered for compact PCB layouts, providing effective noise suppression in high-speed data transmission environments.
Feature Summary
- Provides common mode noise attenuation for differential signal lines
- Compact surface-mount design suitable for space-constrained applications
- Engineered for high-speed network interface protection
Applications
- 1 G BASE-T Ethernet interfaces
- 2.5 G BASE-T Ethernet interfaces
- Network camera signal lines
Procurement Notes
Verify the specific Eaton part number CLCC2V3216-600-R against official datasheets to confirm electrical characteristics such as 60 µH inductance and 200 mA current rating. Ensure compatibility with your PCB footprint and thermal requirements before procurement. Cross-reference manufacturer documentation to validate RoHS compliance and operating temperature ranges.
Selection Notes
Select this component when designing circuits requiring common mode chokes for Gigabit and 2.5 Gigabit Ethernet applications. Consider its 60 µH inductance value for appropriate noise filtering at target frequencies. Evaluate the 200 mA current handling capability against your system's power consumption needs. Verify that the surface-mount package fits within your board layout constraints.
Part Context
This component belongs to Eaton Electronics' CLCC family of chip LAN auto transformers and common mode chokes. The series includes variants like CLCC1V2012 for different form factors. These components are specifically developed to address signal integrity challenges in modern networking equipment, offering integrated solutions for EMI suppression in compact electronic devices.
Replacement Considerations
Consult Eaton's official substitution guides or equivalent manufacturer catalogs for compatible alternatives. Verify that any substitute matches the 60 µH inductance, 200 mA current rating, and physical dimensions. Ensure the replacement maintains compatibility with 1G/2.5G BASE-T standards.
