CLF7045T-1R0N-D

$0.82

Description：FIXED IND 1UH 5.2A 12.48MOHM SMD
Series：CLF-D
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:743deded0ddc Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CLF7045T-1R0N-D is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 1UH 5.2A 12.48MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CLF7045T-1R0N-D

Description：FIXED IND 1UH 5.2A 12.48MOHM SMD
Series：CLF-D
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：1 µH
Tolerance：±30%
Current Rating (Amps)：5.2 A
Current - Saturation (Isat)：8.9A
Shielding：Shielded
DC Resistance (DCR)：12.48mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 150°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.283" L x 0.272" W (7.20mm x 6.90mm)
Height - Seated (Max)：0.189" (4.80mm)
Features：-

Fixed Inductors datasheet and documents for CLF7045T-1R0N-D

CLF7045T-1R0N-D

Fixed Inductors Overview

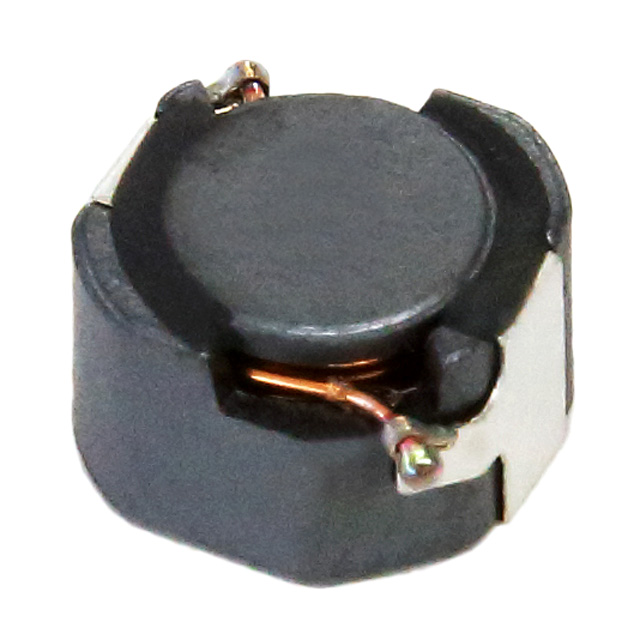

The TDK CLF7045T-1R0N-D is a shielded drum core, wirewound power inductor from the CLF-D series. It features an inductance of 1 µH with ±30% tolerance and a maximum DC resistance of 12.48 mΩ. The component supports a rated current of 5.2 A and a saturation current of 8.9 A. Measuring 7.20 mm x 6.90 mm x 4.80 mm, it operates between -40°C and 150°C. Certified to AEC-Q200 standards for automotive reliability, it utilizes ferrite core material and is tested at 100 kHz.

Fixed Inductors Feature Summary

Shielded drum core construction minimizes electromagnetic interference
AEC-Q200 qualification ensures automotive-grade reliability
High saturation current capability supports demanding power applications

Fixed Inductors Applications

Automotive electronic systems
Power supply circuits
DC-DC converter modules

Fixed Inductors Procurement Notes

This component is officially designated as Not Recommended for New Designs (NRND) and has reached End-of-Life status. Verification of final availability through authorized distributors is essential. Designers should confirm if existing stock meets project requirements or proceed with replacement strategies immediately.

Fixed Inductors Selection Notes

Select this part only for legacy maintenance or specific inventory utilization. Due to its discontinued status, new designs must evaluate alternative components. Ensure the replacement matches the required footprint, electrical parameters, and thermal performance to maintain system integrity without re-certification.

Fixed Inductors Part Context

Part of the CLF-D series, designed specifically for automotive environments. This series emphasizes high current handling and robust shielding within compact surface-mount packages. The CLF7045T variant represents a standard temperature range option within the broader family.
