CLL5240B TR PBFREE

Single Zener Diodes Overview

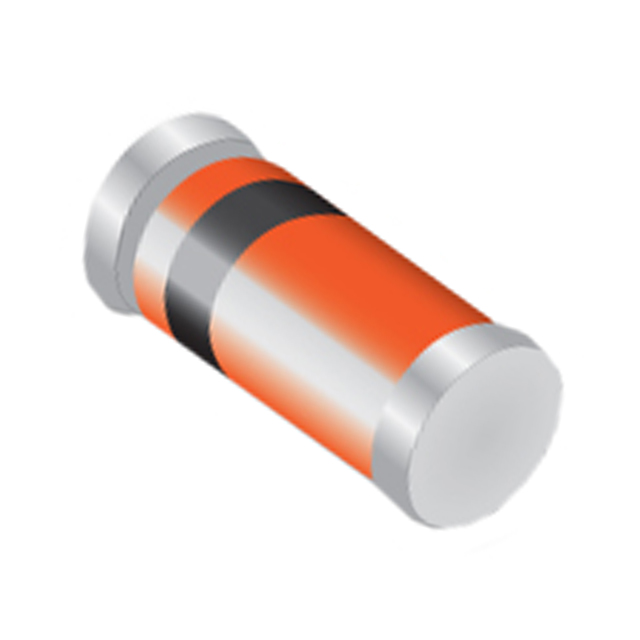

The CLL5240B TR PBFREE is a surface mount silicon Zener diode from Central Semiconductor Corp, housed in an SOD-80 package. It provides a nominal Zener voltage of 10 V with a tolerance of ±5%. The device operates at a test current of 20 mA and dissipates up to 500 mW. Key electrical parameters include a maximum Zener impedance of 17 Ω, a reverse leakage current of 3.0 μA at 8.0 V, and a temperature coefficient of +0.075 %/°C.

Single Zener Diodes Feature Summary

• Designed as a highly reliable voltage regulator for industrial, commercial, entertainment, and computer applications.
• Features a cathode band marking on the SOD-80 case for polarity identification.

Single Zener Diodes Applications

• Industrial circuit regulation
• Commercial equipment power supplies
• Computer system voltage reference

Single Zener Diodes Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm plating type and packaging format. Confirm that the requested part number matches the exact voltage and tolerance requirements for the intended design application before finalizing procurement.

Single Zener Diodes Selection Notes

Select this component when a 10 V surface mount Zener reference is required within the CLL5221B series. Ensure the design accommodates the specified 500 mW power dissipation limit and the operating temperature range of -65°C to +200°C for the chosen environment.

Single Zener Diodes Part Context

This component belongs to the CLL5221B through CLL5267B series of surface mount silicon Zener diodes manufactured by Central Semiconductor Corp. The series covers a voltage range from 2.4 V to 75 V in the SOD-80 package, providing standardized voltage references for various electronic designs.

Single Zener Diodes Replacement Considerations

Official replacement data indicates that CLL5240B TR PBFREE has been discontinued. No direct substitute part numbers are listed in the provided manufacturer notices; contact [email protected] for alternate sourcing assistance.
