CLM2C-ACA-CYBA0343

Overview

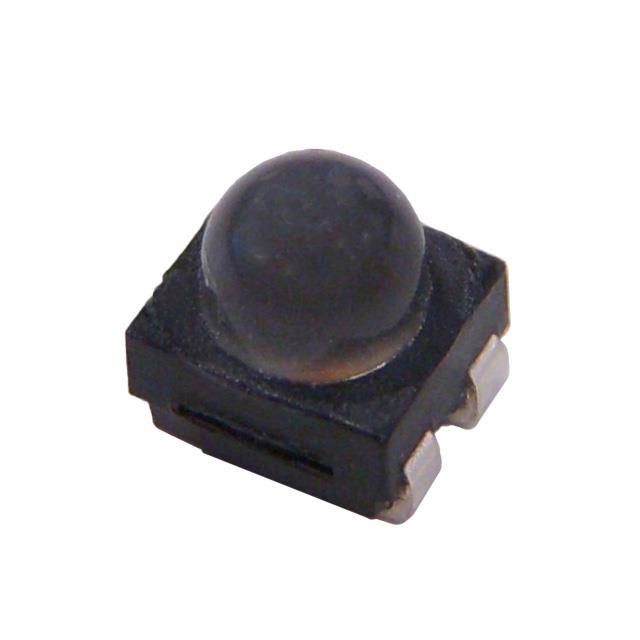

The CLM2C-ACA-CYBA0343 is a Cree LED PLCC4 surface-mount indicator light. It features an amber color with a typical dominant wavelength of 590nm. The device operates at a forward voltage of 2V and a test current of 20mA, producing a luminous intensity of 5.325cd. It utilizes a convex lens and a black housing. The component measures 3.2 x 2.8mm and is rated for operation between -40°C and +100°C. It is classified as MSL 5a with a recommended floor life of 24 hours out of bag.

Feature Summary

• Amber emission with convex lens optics
• PLCC4 surface-mount package
• Black housing construction

Applications

• Channel letter lighting
• Architectural lighting applications
• Outdoor indicator lights in bright sunlight
• Low-power consumption outdoor applications

Procurement Notes

Verify the specific ordering suffix CYBA0343 to ensure correct binning selection (7100 mCd range). Confirm moisture sensitivity level MSL 5a requirements and adhere to the 24-hour floor life limit after bag opening. Ensure wave soldering compatibility during assembly processes.

Selection Notes

Select this component for applications requiring high visibility in bright sunlight due to its amber color and optical design. Consider the PLCC4 footprint and black housing for aesthetic integration. Verify thermal management capabilities given the -40°C to +100°C operating range and low forward voltage requirements.

Part Context

This part belongs to the Cree PLCC4 1-in-1 SMD LED series, designed for discrete indication and architectural lighting. The CLM2C-ACA variant specifically denotes the amber color option within the PLCC4 package family, offering a compact solution for modern electronic displays and signage.

Replacement Considerations

Cross-reference with other Cree PLCC4 amber LEDs such as CLM2C-RCA series variants. Verify pinout compatibility and luminous intensity binning before substitution. Check datasheet specifications for forward voltage and wavelength tolerance differences.
