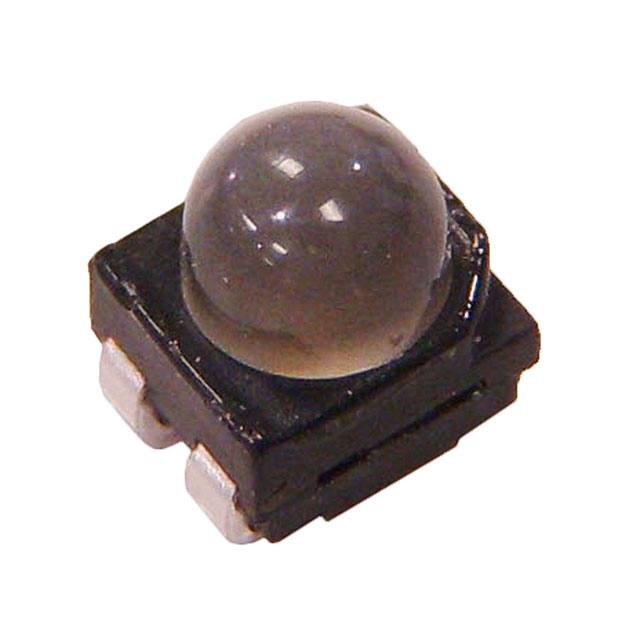

CLM2C-GCA-CXBB07A3
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED GREEN 4PLCC SMD
- Series：CLM2C-GCA/BCA
- Mfr：Cree LED
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green
- Configuration：Standard
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：5620mcd
- Lens Style：Round with Domed Top
- Lens Size：2.45mm Dia
- Voltage - Forward (Vf) (Typ)：3.2V
- Current - Test：20mA
- Viewing Angle：-
- Mounting Type：Surface Mount
- Wavelength - Dominant：530nm
- Wavelength - Peak：-
- Features：-
- Package / Case：4-PLCC
- Supplier Device Package：4-PLCC
- Size / Dimension：3.20mm L x 2.80mm W
- Height (Max)：3.86mm
- Grade：-
- Qualification：-
Download product information
Overview
The CLM2C-GCA-CXBB07A3 is a single-color green surface-mount LED from Cree LED. It utilizes a PLCC-4 package with a dome lens and non-diffused finish. The component operates at a forward current of 20 mA with a forward voltage of approximately 3.5 V. It emits light at a peak wavelength of 530 nm, providing a luminous intensity of 18 cd. The device features a 30-degree viewing angle and functions within a temperature range of -40°C to +100°C.
Feature Summary
- Green emission optimized for high visibility applications
- Standard PLCC-4 SMD package for automated assembly
- Dome lens design for controlled light distribution
Applications
- Indicator lights in consumer electronics
- Status indicators on control panels
- General-purpose signaling devices
Procurement Notes
Verify the specific binning codes for wavelength and intensity upon ordering, as these affect optical performance. Confirm RoHS compliance status through official manufacturer documentation or authorized distributors. Ensure proper ESD handling procedures are followed during storage and assembly to maintain component integrity.
Selection Notes
Select this component when a standard green indicator is required in space-constrained designs. The PLCC-4 form factor allows for easy integration into existing PCB layouts. Consider thermal management requirements if operating near maximum ratings. Verify compatibility with reflow soldering profiles specified in the datasheet.
Part Context
This part belongs to the XLamp CLM2C series, designed for general illumination and indication. It represents a mid-power solution balancing brightness and power consumption. The series supports various colors and packaging options for diverse electronic applications.
