CLM2C-GCA-CYBB0793

Overview

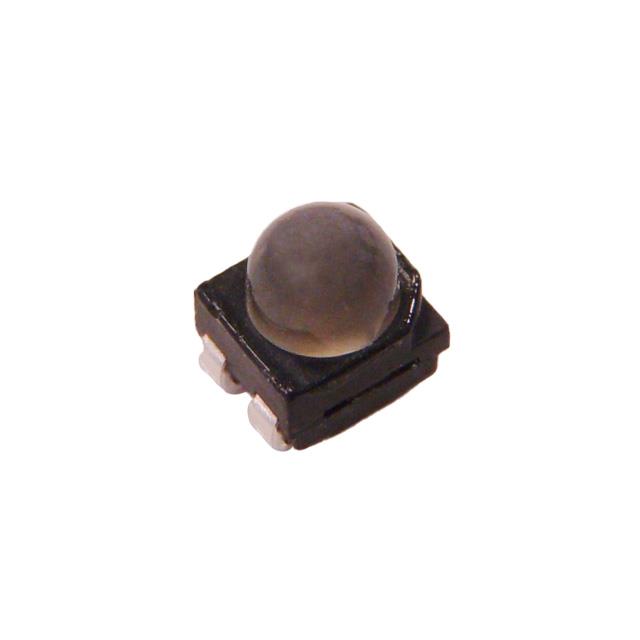

The CLM2C-GCA-CYBB0793 is a surface-mount green LED from the Cree LED PLCC4 family. It features a compact 3.2 x 2.8 mm package with a top-view orientation. The component emits green light at a dominant wavelength of 535 nm. Key electrical parameters include a forward voltage of 4 V and a maximum forward current of 20 mA. The device offers a viewing angle of 30 degrees and delivers a luminous intensity of 9 cd. It is designed for high-brightness applications requiring precise color rendering.

Feature Summary

• Top-view orientation for direct visibility
• Compact PLCC4 surface-mount package
• High brightness output in green spectrum

Applications

• LED indication
• Signage
• Digital displays

Procurement Notes

Verify the specific suffix CYBB0793 to ensure correct binning and optical characteristics, as Cree LEDs utilize detailed ordering codes for wavelength and intensity variations. Confirm MSL 5a rating and 24-hour floor life requirements during storage handling. Cross-reference official datasheets for reflow soldering profiles to prevent thermal damage. Ensure compatibility with automated pick-and-place equipment due to the small form factor.

Selection Notes

Select this component when a high-intensity green indicator is required in space-constrained designs. The PLCC4 package allows for efficient PCB real estate usage compared to through-hole alternatives. Consider the 30-degree viewing angle for applications where direct line-of-sight is necessary. Evaluate thermal management capabilities if operating near maximum current limits to maintain longevity and consistent color performance over time.

Part Context

This part belongs to the Cree LED PLCC4 series, which includes both green and blue variants. The CLM2C-GCA/BCA designation indicates a dual-die or single-color SMD LED optimized for signage and general illumination. The series is known for meeting automotive certification standards like ISO/IATF16949, ensuring reliability in demanding environments. The specific model focuses on green emission properties within this robust platform.

Replacement Considerations

Direct substitutes may include other PLCC4 green LEDs from manufacturers such as Everlight or Kingbright, provided pinout and dimensions match. Verify that alternative components meet the same 535 nm wavelength and 9 cd intensity specifications. Check for equivalent forward voltage drops to ensure circuit compatibility without resistor adjustments.
