CLM2D-GPC-CB0E0783

Overview

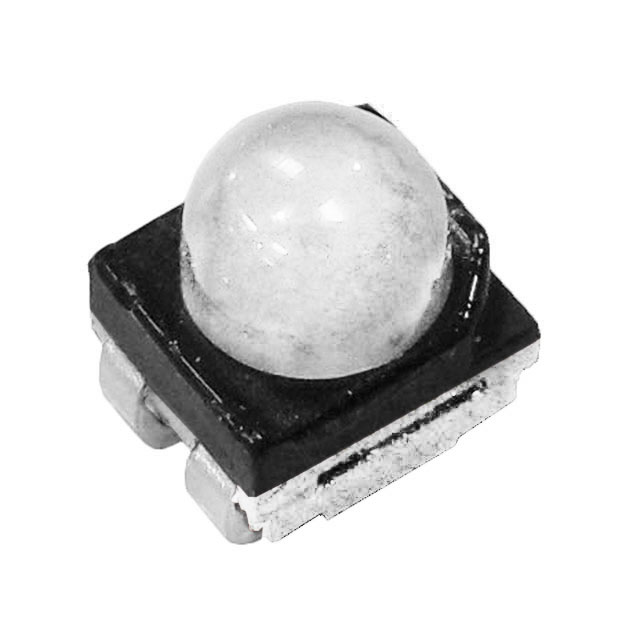

The CLM2D-GPC-CB0E0783 is a single-color green surface-mount LED from Cree LED, housed in a PLCC4 package with dimensions of 3.2mm x 2.8mm. It features a round lens with a domed top and a 2.45mm diameter. The component operates at a typical forward voltage of 2.9V and has a test current of 20mA. It delivers a millicandela rating of 12550mcd with a viewing angle of 30 degrees. The wavelength range is 520nm to 530nm, and the peak power is 140mW. Operating and storage temperatures span from -40°C to +100°C.

Feature Summary

• Utilizes a PLCC4 industry-standard package for reliable surface-mount integration
• Features a domed lens design optimized for specific light distribution angles
• Engineered for high brightness output suitable for visible signage applications

Applications

• Channel letter lighting systems
• Architectural lighting installations
• General indicator applications requiring high visibility

Procurement Notes

Verify the complete part number including suffixes to ensure correct binning and optical characteristics. Confirm moisture sensitivity level (MSL 5a) requirements and floor life constraints during storage and handling. Check compatibility with recommended reflow temperature profiles to prevent thermal damage. Ensure supply chain documentation matches the specific Cree LED manufacturing batch for quality assurance.

Selection Notes

Select this component when high luminous intensity is required for outdoor or large-scale signage. Consider the 30-degree viewing angle for focused beam applications rather than wide-area illumination. Evaluate the 2.9V forward voltage against system power budgets. Verify that the PLCC4 footprint aligns with existing PCB designs. Assess thermal management needs given the operating temperature range up to 100°C.

Part Context

This part belongs to the CLM2D series of SMD LEDs designed for robust performance in demanding environments. The series offers various color options and binning configurations to meet diverse lighting standards. It represents a standard solution for manufacturers seeking reliable components for commercial and architectural lighting projects.

Replacement Considerations

Direct substitutes within the same series include CLM2D-GPC-CB0E0793 and CLM2D-BPC variants. Verify electrical parameters and mechanical dimensions before substitution. Cross-reference datasheets for any differences in luminous intensity bins or thermal characteristics.
